24x24 house plans

A 24x24 house is 24 by 24 ft measured outside, which gives 576 sq ft on one floor. Put a second floor under a steep roof and the same footprint grows to 832 sq ft, counting only the headroom that qualifies. See the 24x24 house plans below, drawn to scale and measured room by room.

Plans
2
drawn to scale
Sizes
576 to 832 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

24′24′LIVING ROOM172.7 sq ftKITCHEN116.2 sq ftBEDROOM116.3 sq ftBATH42.9 ft²LAUNDRY50.9 ft²CLOSET

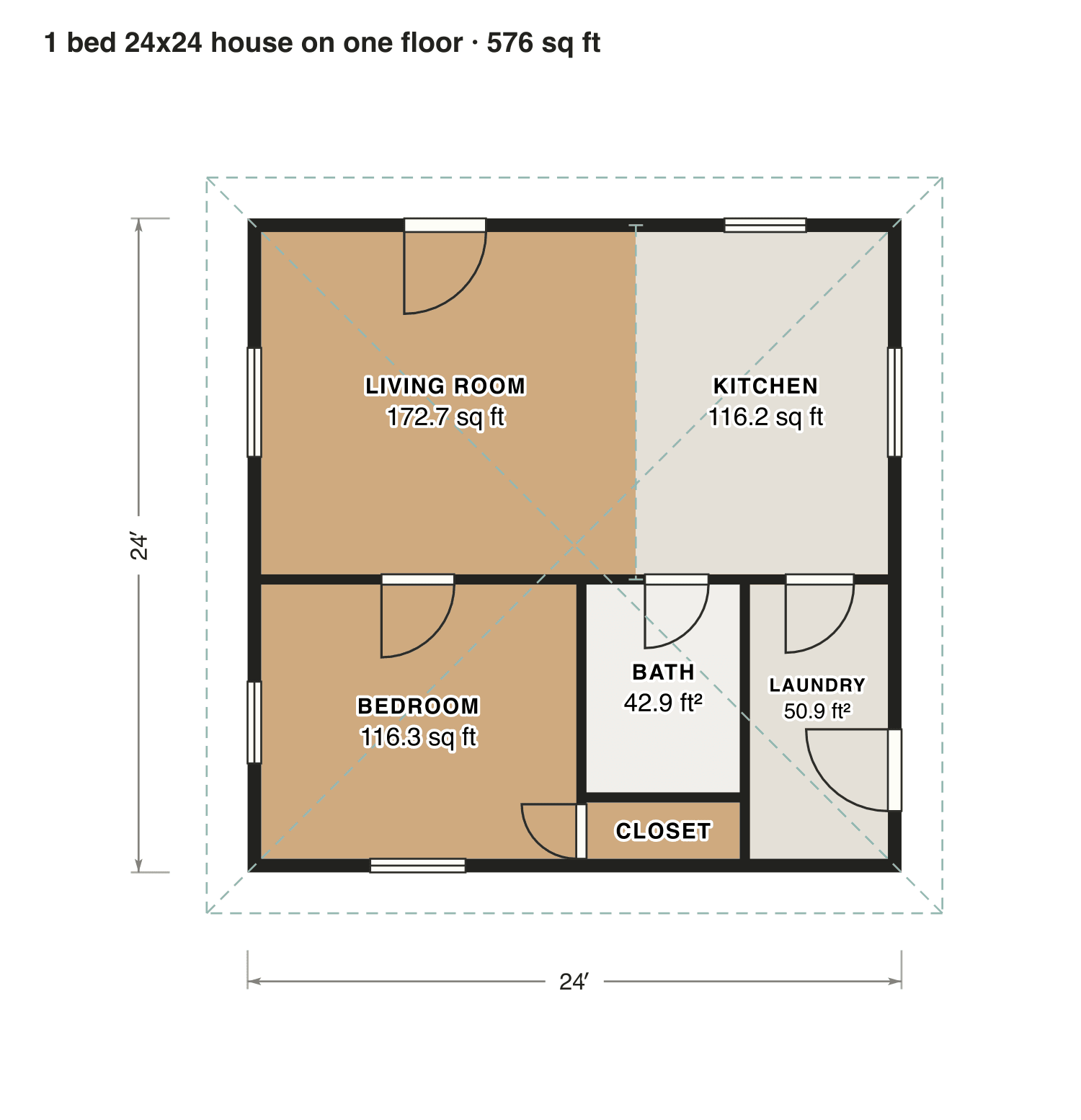

1 bed 24x24 house on one floor

The plans

24x24 house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

1 bed 24x24 house on one floor

A big living room and kitchen across the front, a bedroom with a closet behind it, and a laundry room with the back door. The bathroom opens off the kitchen end.

Finished area
576 sq ft
54 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
1 bed, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

1 bed 24x24 house on one floor floor plan: 576 sq ft (54 m²) finished, 1 bed, 1 bath · one floor, drawn to scale with every room labeled.
24′ × 24′ outsideExample floor plan, not a construction drawing

Rooms · 1 bed 24x24 house on one floor

Room areas, 1 bed 24x24 house on one floor
RoomFloorSq ftCounts as
Living roomFloor 1173Finished, counts
KitchenFloor 1116Finished, counts
BedroomFloor 1116Finished, counts
BathFloor 143Finished, counts
ClosetFloor 112Finished, counts
LaundryFloor 151Finished, counts
Finished area, ANSI Z765576outside the walls

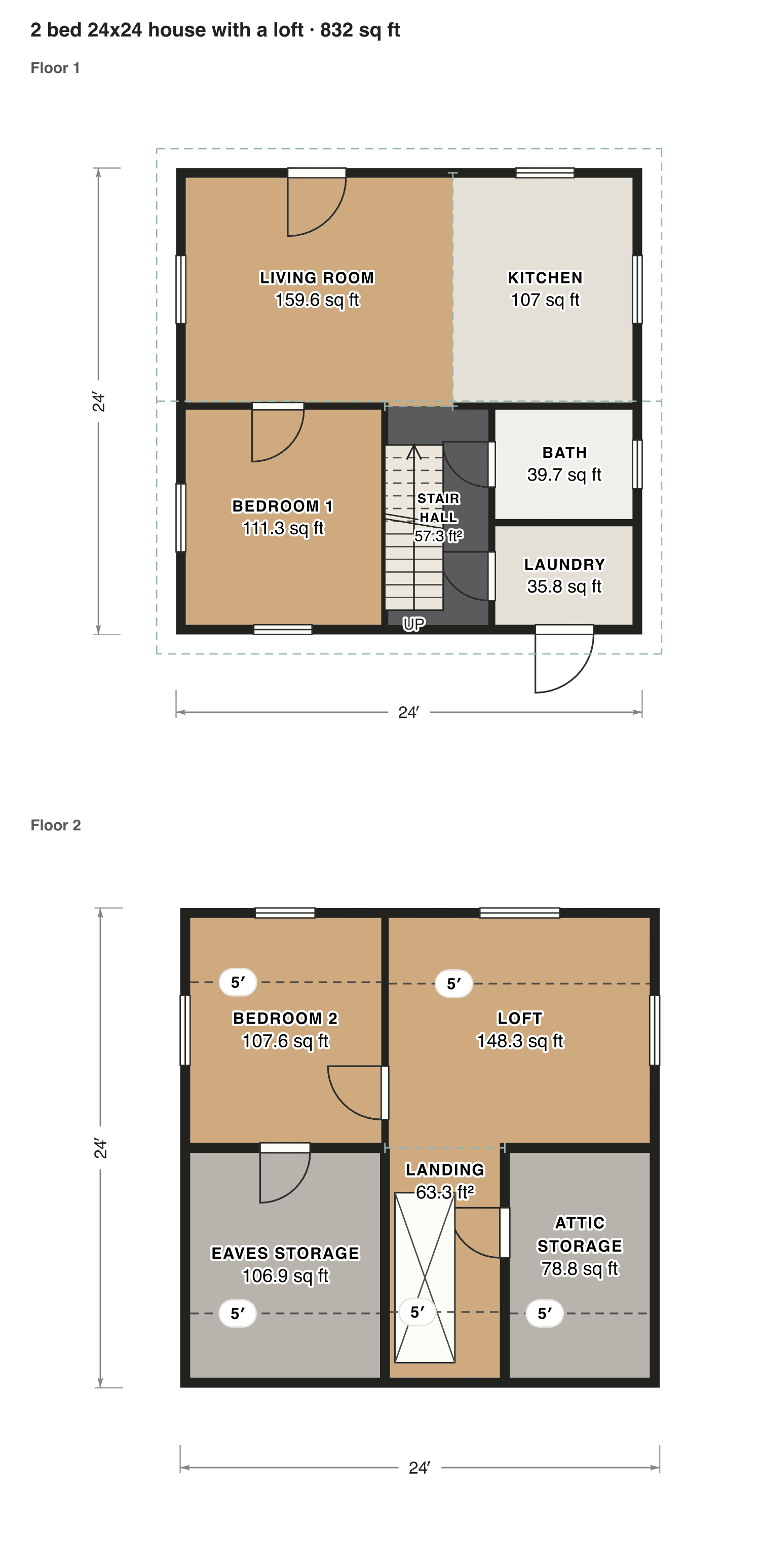

2 bed 24x24 house with a loft

Bedroom, bath and laundry on the ground floor. A stair in the middle rises to a second bedroom and an open loft at the front, with attic storage tucked under the back slope.

Finished area
832 sq ft
77 m² · ANSI Z765
Not counted
321 sq ft
listed apart, see below
Layout
2 bed, 1 bath
2 floors
  • 206 sq ft garage, shop or storage
  • 115 sq ft under 5 ft
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

2 bed 24x24 house with a loft floor plan: 832 sq ft (77 m²) finished, 2 bed, 1 bath · 2 floors, drawn to scale with every room labeled.
24′ × 24′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed 24x24 house with a loft

Room areas, 2 bed 24x24 house with a loft
RoomFloorSq ftCounts as
Living roomFloor 1160Finished, counts
KitchenFloor 1107Finished, counts
Bedroom 1Floor 1111Finished, counts
Stair hallFloor 157Finished, counts
BathFloor 140Finished, counts
LaundryFloor 136Finished, counts
Bedroom 2Floor 2108Counts above 5 ft; 38 sq ft under 5 ft not counted
Eaves storageFloor 2107Not finished, not counted
LoftFloor 2148Counts above 5 ft; 52 sq ft under 5 ft not counted
LandingFloor 263Counts above 5 ft; 25 sq ft under 5 ft not counted
Attic storageFloor 279Not finished, not counted
Finished area, ANSI Z765832outside the walls

What counts

What counts in the square footage

Upstairs in the loft plan, 115 sq ft sits under 5 ft, and the two storage spaces behind the knee walls add 206 sq ft of unfinished attic. Neither one counts toward the finished area.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

24x24 house plans: questions

About these 24x24 house plans. Can’t find your answer? Send us a message.

Is 1500 sq ft small for a house?

It is below the size of most new houses in the US, but far from tiny. A 24x24 house on one floor has 576 sq ft, well under half of that.

How many bedrooms fit in a 24x24 house?

One fits easily on one floor; two if you give up some living room or add a loft. Our 2 bedroom tiny house page shows a 24 × 24 with both bedrooms on one floor.

How much does a loft add to a 24x24 house?

In our loft plan the upper floor adds 256 sq ft of finished area. The rest of that floor is too low or unfinished.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
