Studio apartment floor plans

A studio apartment is one room for living, sleeping and cooking, with a separate bathroom. Our two examples measure 491 and 499 sq ft inside the walls; you see exactly how the space is used. See the studio apartment floor plan below, drawn to scale and measured room by room.

Plans
2
drawn to scale
Sizes
491 to 499 sq ft
inside the walls or ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

22′ 6″24′ 6″LIVING AND SLEEPING313.1 sq ftENTRY39.1 ft²KITCHEN81.9 sq ftBATH56.7 sq ft
Studio apartment with one open room

The plans

Studio apartment floor plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

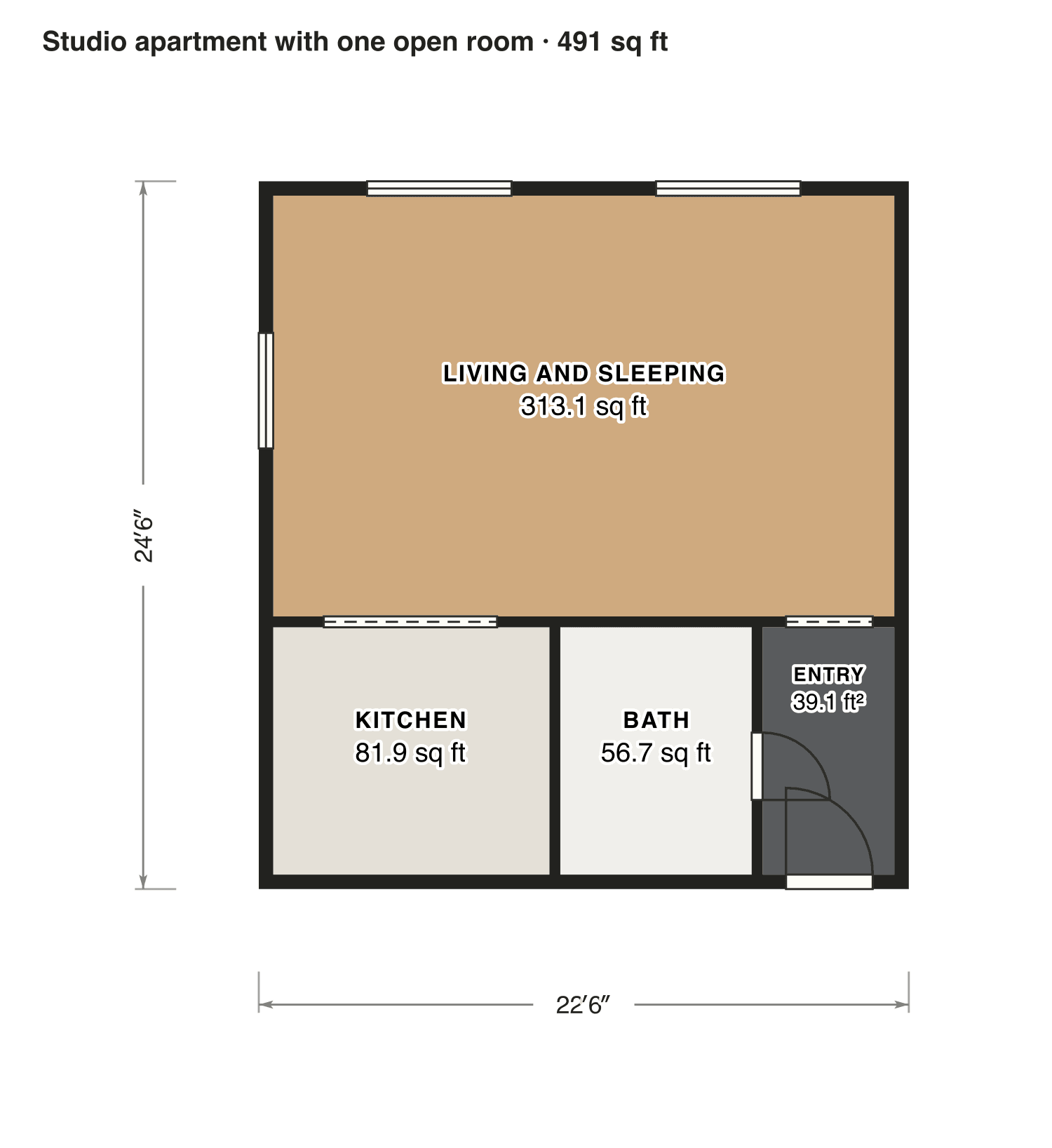

Studio apartment with one open room

Living, sleeping and kitchen in one room, with the bathroom and a closet by the door.

Inside the walls
491 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
studio, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

Studio apartment with one open room floor plan: 491 sq ft (46 m²) inside the walls, studio, 1 bath · one floor, drawn to scale with every room labeled.
23′ × 25′ outsideExample floor plan, not a construction drawing

Rooms · Studio apartment with one open room

Room areas, Studio apartment with one open room
RoomFloorSq ftCounts as
Living and sleepingFloor 1313Finished, counts
KitchenFloor 182Finished, counts
BathFloor 157Finished, counts
EntryFloor 139Finished, counts
Rooms inside the walls491

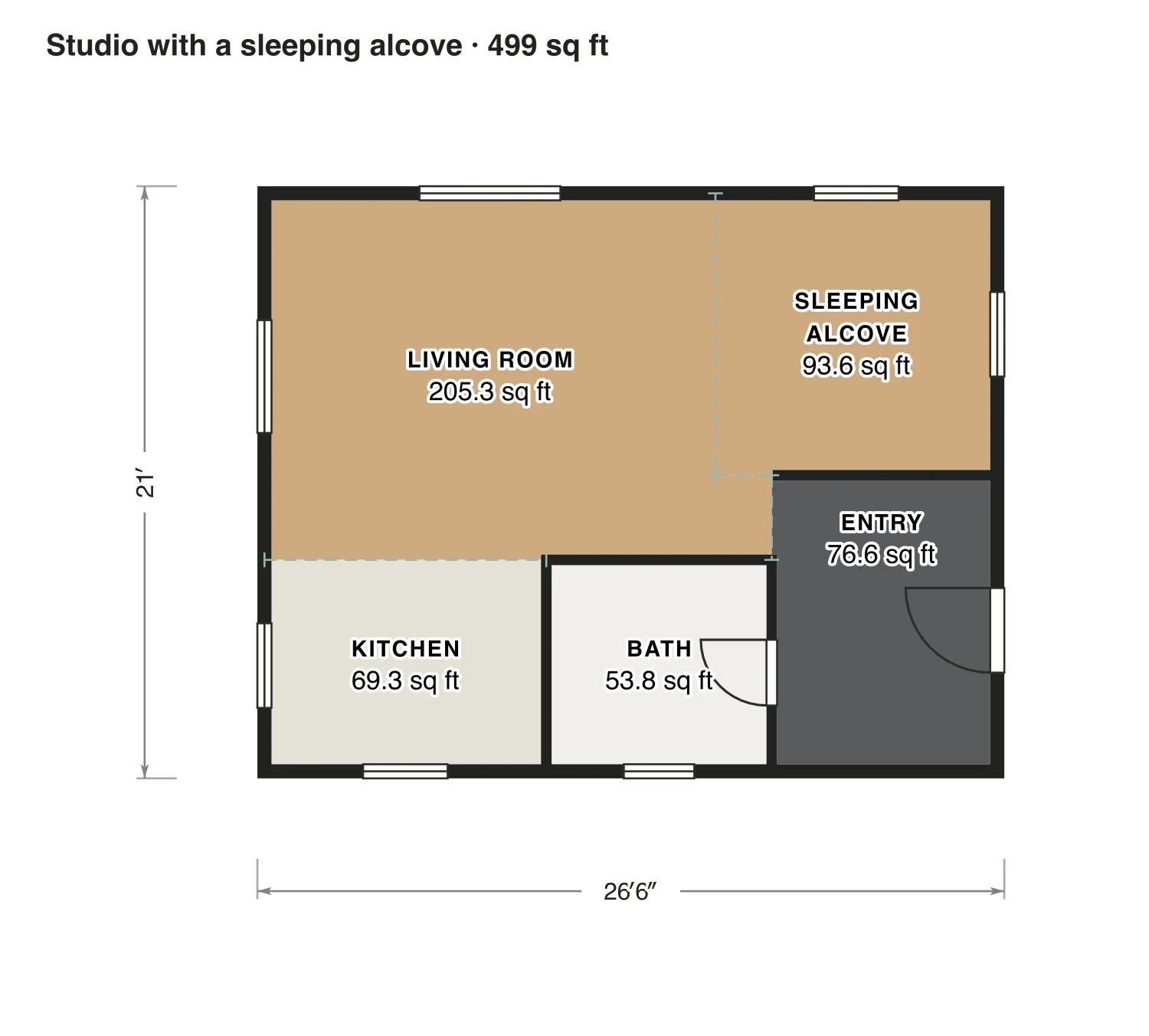

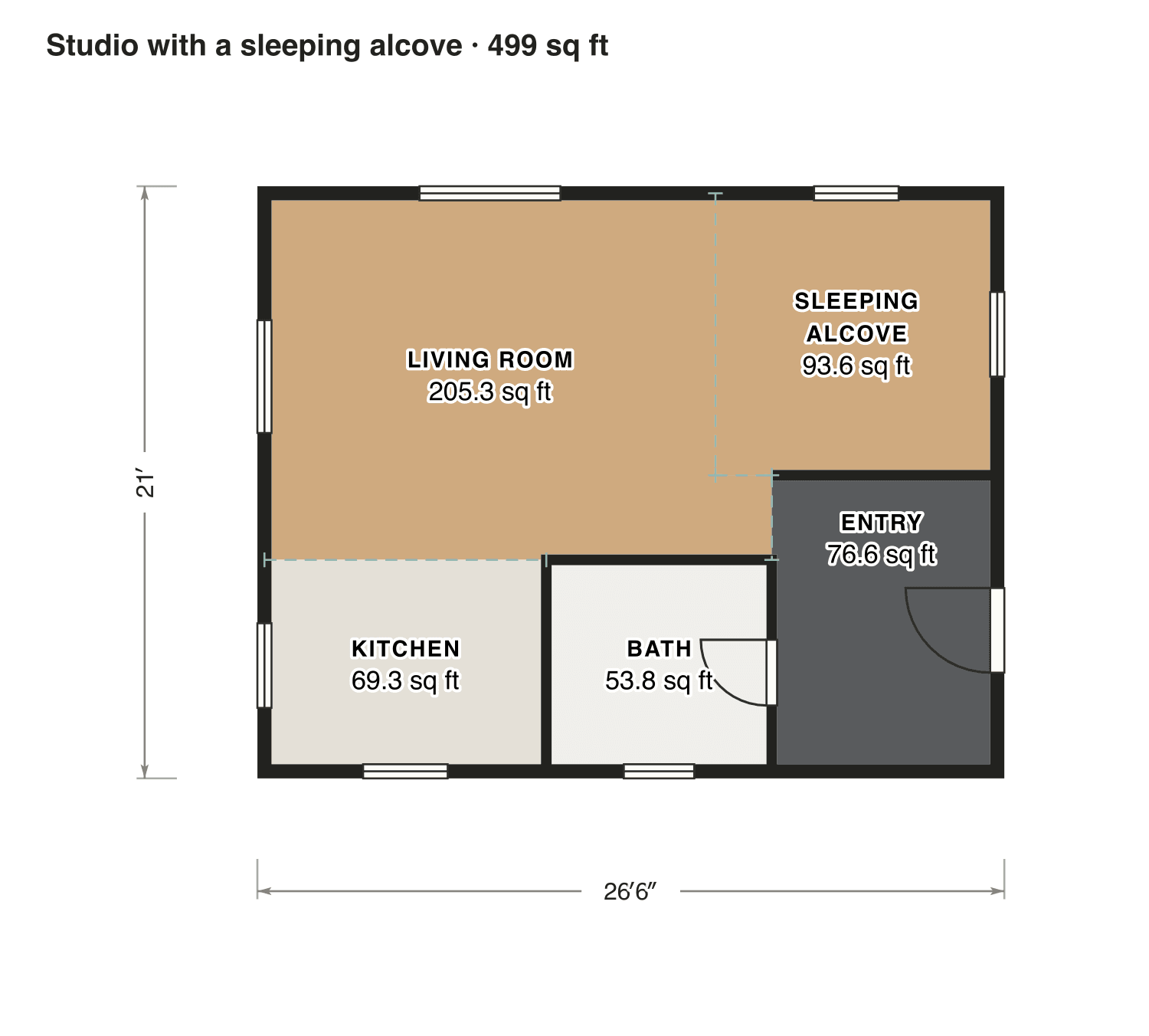

Studio with a sleeping alcove

The bed sits in an alcove off the living room, so the room reads as two spaces without a wall. A short entry hall leads past the bathroom.

Inside the walls
499 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
studio, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

Studio with a sleeping alcove floor plan: 499 sq ft (46 m²) inside the walls, studio, 1 bath · one floor, drawn to scale with every room labeled.
27′ × 21′ outsideExample floor plan, not a construction drawing

Rooms · Studio with a sleeping alcove

Room areas, Studio with a sleeping alcove
RoomFloorSq ftCounts as
Living roomFloor 1205Finished, counts
Sleeping alcoveFloor 194Finished, counts
KitchenFloor 169Finished, counts
BathFloor 154Finished, counts
EntryFloor 177Finished, counts
Rooms inside the walls499

What counts

What counts in the square footage

Apartments are usually listed by the area inside the walls, so that is the main number here. The outside measure, with the walls, is shown as well: ask how a listing was measured before you compare.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Studio apartment floor plan: questions

About these studio apartment plans. Can’t find your answer? Send us a message.

What is a good size for a studio apartment?

Most studios are between about 400 and 600 sq ft. Our two plans have 491 and 499 sq ft inside the walls.

Is a studio apartment big enough for 2 people?

It can be, if the bed has its own corner, like the alcove plan here, and the kitchen has room for a table for two. Draw your own furniture in the editor to check.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
