Beach house plans

A beach house is a home made for sand, salt air and life outdoors, often raised on pilings near the water and wrapped in decks. Our two plans have 1,200 to 1,800 sq ft of finished living space.

Plans
2
drawn to scale
Sizes
1,200 to 1,800 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

18′ 6″12′ 6″ENTRY64 sq ftSTORAGE133 sq ftUP
3 bed beach house on pilings

The plans

Beach house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

3 bed beach house on pilings

The living level sits a full story up. A stair from the closed entry on the ground arrives between the kitchen and the great room, and every main room opens onto a deck as wide as the house.

Finished area
1,800 sq ft
167 m² · ANSI Z765
Not counted
945 sq ft
listed apart, see below
Layout
3 bed, 2 bath
2 floors
  • 231 sq ft garage, shop or storage
  • 714 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

3 bed beach house on pilings floor plan: 1,800 sq ft (167 m²) finished, 3 bed, 2 bath · 2 floors, drawn to scale with every room labeled.
19′ × 13′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed beach house on pilings

Room areas, 3 bed beach house on pilings
RoomFloorSq ftCounts as
EntryGround level64Not finished, not counted
StorageGround level133Not finished, not counted
Bedroom 2Main level157Finished, counts
Bedroom 3Main level174Finished, counts
Bath 2Main level40Finished, counts
HallMain level54Finished, counts
LaundryMain level37Finished, counts
Stair hallMain level65Finished, counts
KitchenMain level207Finished, counts
Great roomMain level254Finished, counts
Dining roomMain level152Finished, counts
Primary bathMain level111Finished, counts
Walk-in closetMain level93Finished, counts
Primary bedroomMain level308Finished, counts
DeckOutside714Outside, not counted
Finished area, ANSI Z7651,800outside the walls

2 bed coastal cottage

A cottage on one floor behind a screened porch. Each bedroom has a bath, and the back door opens into a beach entry with the laundry and a bath, so the sand stops there.

Finished area
1,200 sq ft
111 m² · ANSI Z765
Not counted
296 sq ft
listed apart, see below
Layout
2 bed, 2 bath
one floor
  • 296 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

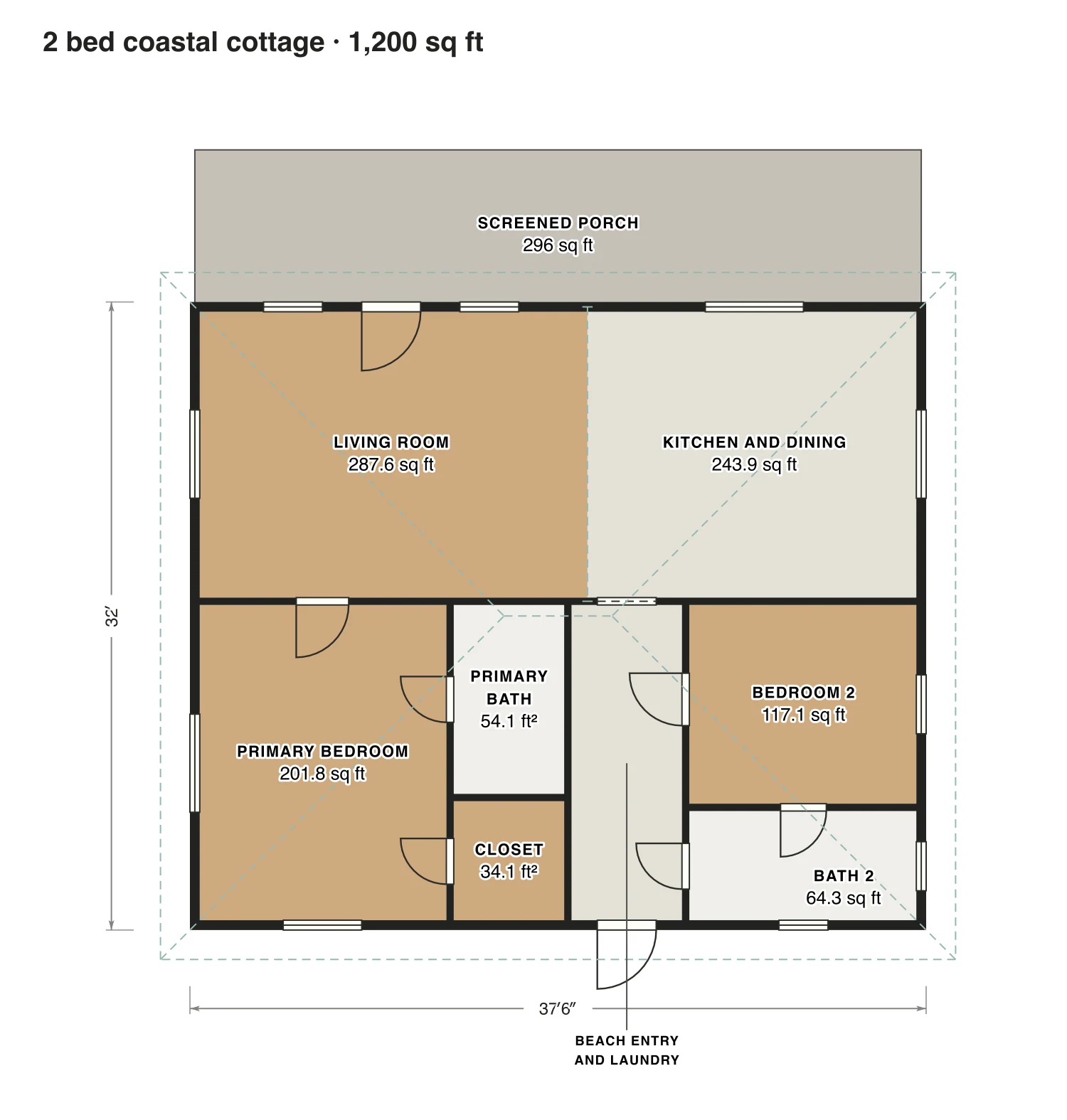

2 bed coastal cottage floor plan: 1,200 sq ft (111 m²) finished, 2 bed, 2 bath · one floor, drawn to scale with every room labeled.
38′ × 32′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed coastal cottage

Room areas, 2 bed coastal cottage
RoomFloorSq ftCounts as
Living roomFloor 1288Finished, counts
Kitchen and diningFloor 1244Finished, counts
Primary bedroomFloor 1202Finished, counts
Primary bathFloor 154Finished, counts
ClosetFloor 134Finished, counts
Beach entry and laundryFloor 190Finished, counts
Bedroom 2Floor 1117Finished, counts
Bath 2Floor 164Finished, counts
Screened porchOutside296Outside, not counted
Finished area, ANSI Z7651,200outside the walls

What counts

What counts in the square footage

On the raised plan you come in at ground level, where the entry and storage are enclosed but unfinished: 231 sq ft listed apart. Only the finished main level counts, and its 714 sq ft deck stays outside the total.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Beach house plans: questions

About these beach house plans. Can’t find your answer? Send us a message.

What are some plans for a small beach house?

Keep it to one open room for living and cooking, two bedrooms and a porch. Our coastal cottage does that in 1,200 sq ft.

Does the space under a raised beach house count?

Only if it is finished living space, and in many flood zones the area below the house may only hold parking, storage and the entry stair. A closed but unfinished ground floor is listed apart.

What is a good beach house layout?

Living areas on the side with the view, a deck you reach from more than one room, a beach entry with a bath near the back door, and bedrooms at the quiet ends.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
