1 bedroom apartment floor plans

A 1-bedroom apartment has a separate bedroom with a door, a living room, a kitchen and a bath. Our two plans have 648 and 751 sq ft inside the walls, the larger one with a room to work in. See the 1 bedroom apartment floor plans below, drawn to scale and measured room by room.

Plans
2
drawn to scale
Sizes
648 to 751 sq ft
inside the walls or ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

31′ 2″23′ 7″LIVING ROOM209.7 sq ftBEDROOM163 sq ftBATH72.3 sq ftENTRY44.7 ft²WALK-INCLOSET66.1 sq ftKITCHEN91.6 sq ft
1 bed apartment, 650 sq ft

The plans

1 bedroom apartment floor plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

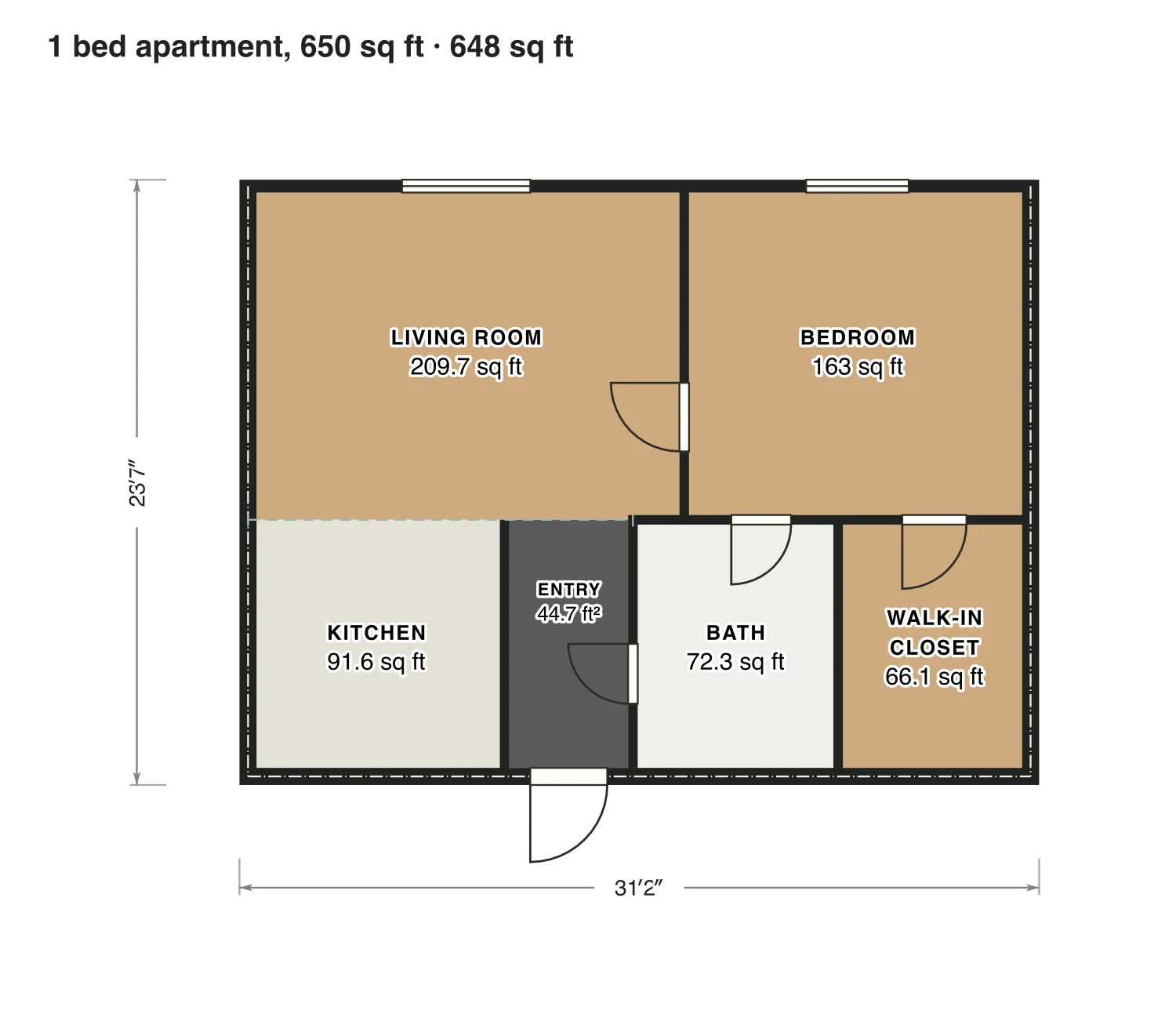

1 bed apartment, 650 sq ft

Living room and bedroom side by side along the windows. The bath has two doors, one from the bedroom and one from the entry, and a walk-in closet sits behind the bedroom.

Inside the walls
648 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
1 bed, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

1 bed apartment, 650 sq ft floor plan: 648 sq ft (60 m²) inside the walls, 1 bed, 1 bath · one floor, drawn to scale with every room labeled.
31′ × 24′ outsideExample floor plan, not a construction drawing

Rooms · 1 bed apartment, 650 sq ft

Room areas, 1 bed apartment, 650 sq ft
RoomFloorSq ftCounts as
Living roomFloor 1210Finished, counts
KitchenFloor 192Finished, counts
EntryFloor 145Finished, counts
BathFloor 172Finished, counts
BedroomFloor 1163Finished, counts
Walk-in closetFloor 166Finished, counts
Rooms inside the walls648

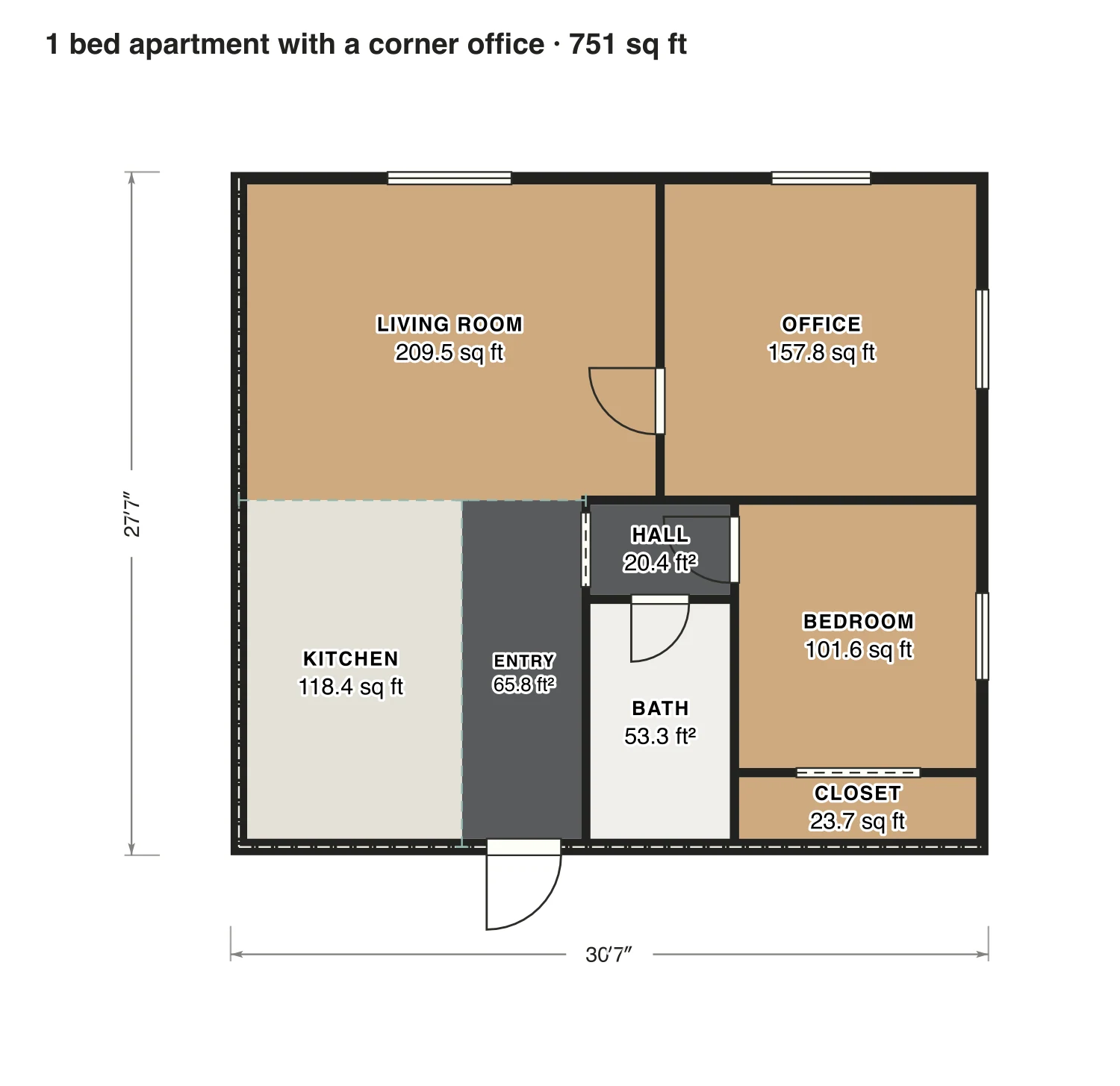

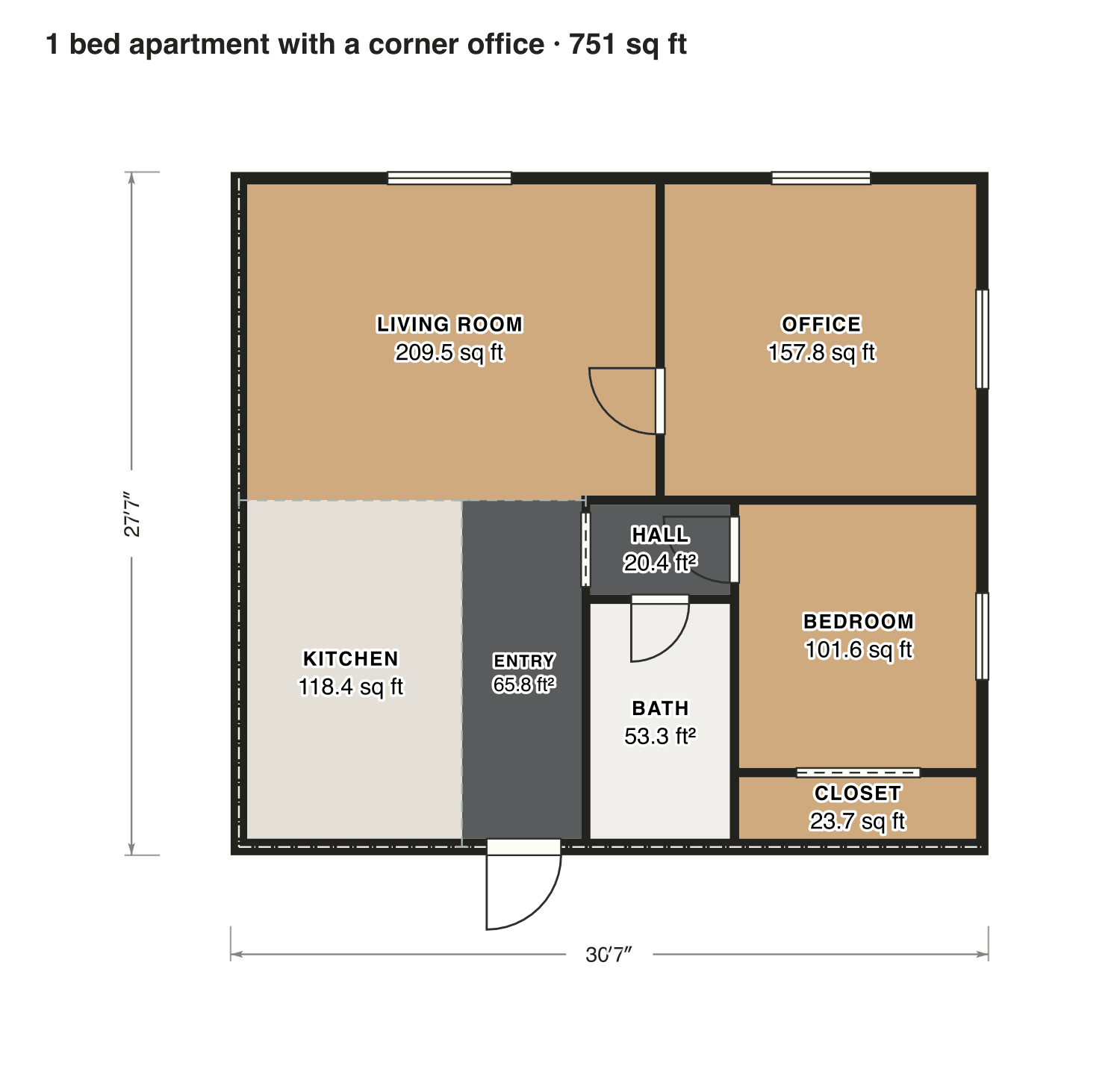

1 bed apartment with a corner office

A corner unit with windows on two sides: the living room and a home office along the front, the bedroom with a reach-in closet along the side. The kitchen is open to the living room.

Inside the walls
751 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
1 bed, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

1 bed apartment with a corner office floor plan: 751 sq ft (70 m²) inside the walls, 1 bed, 1 bath · one floor, drawn to scale with every room labeled.
31′ × 28′ outsideExample floor plan, not a construction drawing

Rooms · 1 bed apartment with a corner office

Room areas, 1 bed apartment with a corner office
RoomFloorSq ftCounts as
Living roomFloor 1210Finished, counts
OfficeFloor 1158Finished, counts
KitchenFloor 1118Finished, counts
EntryFloor 166Finished, counts
HallFloor 120Finished, counts
BathFloor 153Finished, counts
BedroomFloor 1102Finished, counts
ClosetFloor 124Finished, counts
Rooms inside the walls751

What counts

What counts in the square footage

The office in the corner plan is finished space, listed as an office rather than a bedroom because it opens from the living room and has no closet. That unit has 751 sq ft inside the walls and 844 sq ft to their outer face.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

1 bedroom apartment floor plans: questions

About these 1 bedroom apartment plans. Can’t find your answer? Send us a message.

How big is a 1 bedroom apartment?

Often about 550 to 850 sq ft inside. Ours have 648 and 751 sq ft; for a smaller one see our apartment and studio pages.

What is the difference between a 1 bedroom and a studio?

In a 1-bedroom the bed is in its own room with a door. In a studio you sleep in the main room, sometimes in an alcove, which saves a wall and a door.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
