Apartment floor plans

An apartment is a home on one level inside a larger building, with neighbors on one or more sides and a shared hall or stair. Our two examples measure 1,200 and 555 sq ft inside the walls. See the apartment floor plans below, drawn to scale and measured room by room.

Plans
2
drawn to scale
Sizes
555 to 1,200 sq ft
inside the walls or ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

48′ 7″27′ 7″PRIMARY BEDROOM196.3 sq ftBEDROOM 2117.5 sq ftLIVING ROOM323.2 sq ftHALL40.3 sq ftPRIMARYBATH85.8 sq ftWALK-INCLOSET64.6 ft²BATH 243.9 sq ftENTRYKITCHEN118.1 sq ftBEDROOM 3132.7 sq ftLAUNDRY29.7 sq ft
3 bed corner apartment

The plans

Apartment floor plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

3 bed corner apartment

Windows on two sides light the living room in the corner and all three bedrooms. The door from the corridor opens to the kitchen on one side and a hall to the bedrooms, past the second bath, on the other.

Inside the walls
1,200 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
3 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

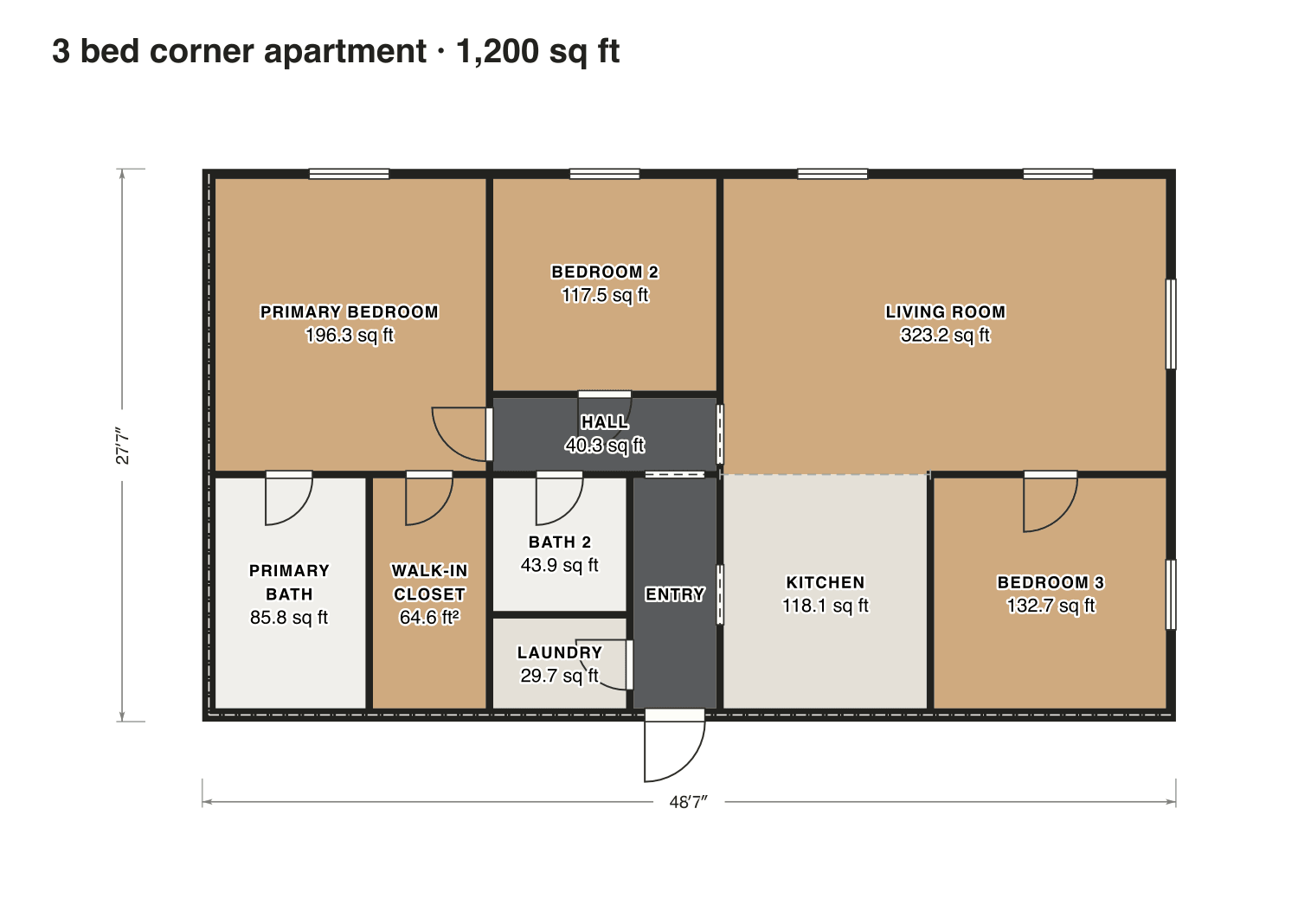

3 bed corner apartment floor plan: 1,200 sq ft (111 m²) inside the walls, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
49′ × 28′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed corner apartment

Room areas, 3 bed corner apartment
RoomFloorSq ftCounts as
Primary bedroomFloor 1196Finished, counts
Primary bathFloor 186Finished, counts
Walk-in closetFloor 165Finished, counts
Bedroom 2Floor 1118Finished, counts
HallFloor 140Finished, counts
Living roomFloor 1323Finished, counts
Bath 2Floor 144Finished, counts
LaundryFloor 130Finished, counts
EntryFloor 147Finished, counts
KitchenFloor 1118Finished, counts
Bedroom 3Floor 1133Finished, counts
Rooms inside the walls1,200

Small 1 bed apartment

Only one wall has windows, so the living room and the bedroom share it. Kitchen, bath and a laundry closet sit in the inner half near the front door, where daylight matters least.

Inside the walls
555 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
1 bed, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

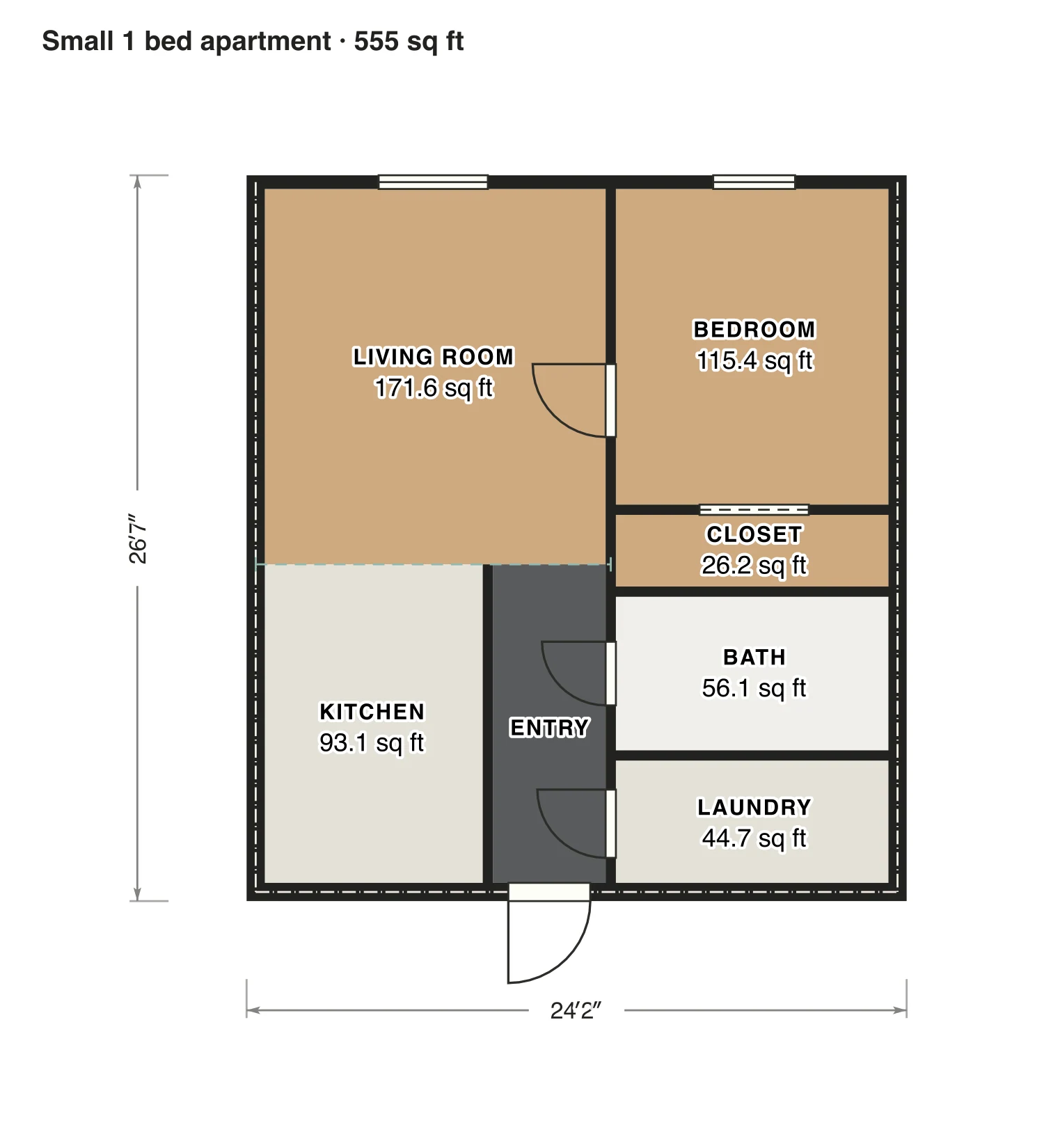

Small 1 bed apartment floor plan: 555 sq ft (52 m²) inside the walls, 1 bed, 1 bath · one floor, drawn to scale with every room labeled.
24′ × 27′ outsideExample floor plan, not a construction drawing

Rooms · Small 1 bed apartment

Room areas, Small 1 bed apartment
RoomFloorSq ftCounts as
Living roomFloor 1172Finished, counts
BedroomFloor 1115Finished, counts
ClosetFloor 126Finished, counts
KitchenFloor 193Finished, counts
EntryFloor 148Finished, counts
BathFloor 156Finished, counts
LaundryFloor 145Finished, counts
Rooms inside the walls555

What counts

What counts in the square footage

Walls shared with a neighbor or the corridor are thicker and have no windows. Inside the walls the corner unit has 1,200 sq ft; measured to the outside, as ANSI Z765 does for a house, it would be 1,340 sq ft. Ask which one a listing uses.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Apartment floor plans: questions

About these apartment plans. Can’t find your answer? Send us a message.

How do I find the floor plan for my apartment?

Ask the landlord or the property manager first; many keep a plan of each unit. If there is none, measure each room with a tape and draw it in the editor, and the areas add up as you go.

What are the most common floor plans in apartments?

Studios, one-bedroom and two-bedroom units make up most of the market. Within those, the main choices are where the bedrooms sit, side by side or split, and whether the unit has windows on one side or two.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
