Barndominium floor plans

A barndominium is a home inside a barn-style building, usually a steel or pole-barn frame, often with a shop under the same roof. Our three plans have 1,800 to 2,360 sq ft of finished living space; the shop and the porch don't count toward it. See the barndominium floor plans below, drawn to scale and measured room by room.

Plans
3
drawn to scale
Sizes
1,800 to 2,360 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

64′ 6″40′ 6″BEDROOM 2265.3 sq ftGREAT ROOM651.2 sq ftLAUNDRY88.2 ft²SHOP677.2 sq ftPRIMARY BEDROOM343.6 sq ftBEDROOM 3157.5 sq ftCLOSET53.5 sq ftWALK-INCLOSET57.7 ft²PRIMARY BATH88.6 sq ftBATH54.1 sq ft
3 bed barndominium with a shop

The plans

Barndominium floor plans, 3 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

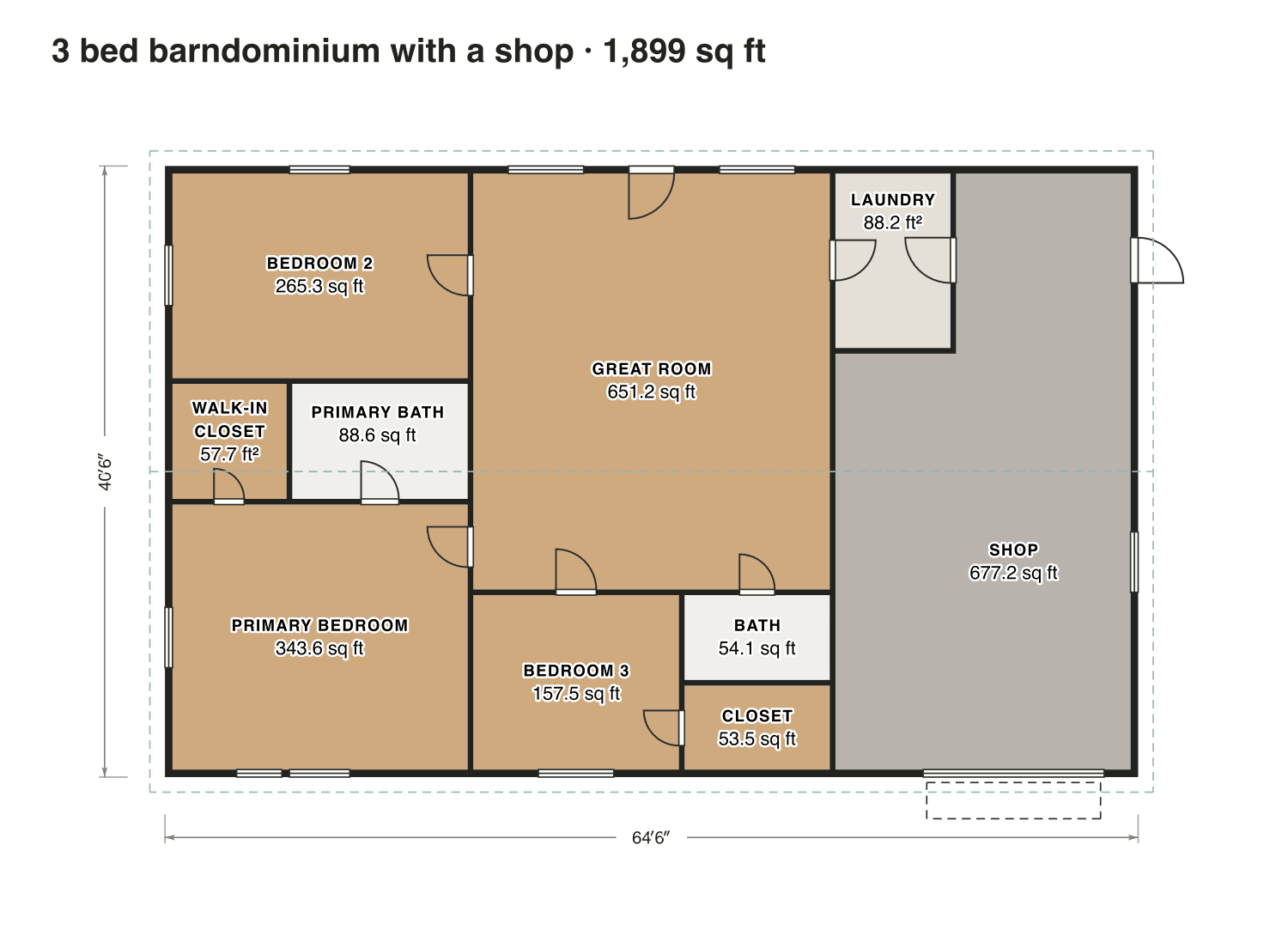

3 bed barndominium with a shop

Living quarters on one side of the building and a shop with a 12 ft door on the other. The shop is unfinished, so it stays out of the living area.

Finished area
1,899 sq ft
176 m² · ANSI Z765
Not counted
713 sq ft
listed apart, see below
Layout
3 bed, 2 bath
one floor
  • 713 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

3 bed barndominium with a shop floor plan: 1,899 sq ft (176 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
65′ × 41′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed barndominium with a shop

Room areas, 3 bed barndominium with a shop
RoomFloorSq ftCounts as
Bedroom 2Floor 1265Finished, counts
Walk-in closetFloor 158Finished, counts
Primary bathFloor 189Finished, counts
Primary bedroomFloor 1344Finished, counts
Great roomFloor 1651Finished, counts
Bedroom 3Floor 1158Finished, counts
BathFloor 154Finished, counts
ClosetFloor 154Finished, counts
LaundryFloor 188Finished, counts
ShopFloor 1677Not finished, not counted
Finished area, ANSI Z7651,899outside the walls

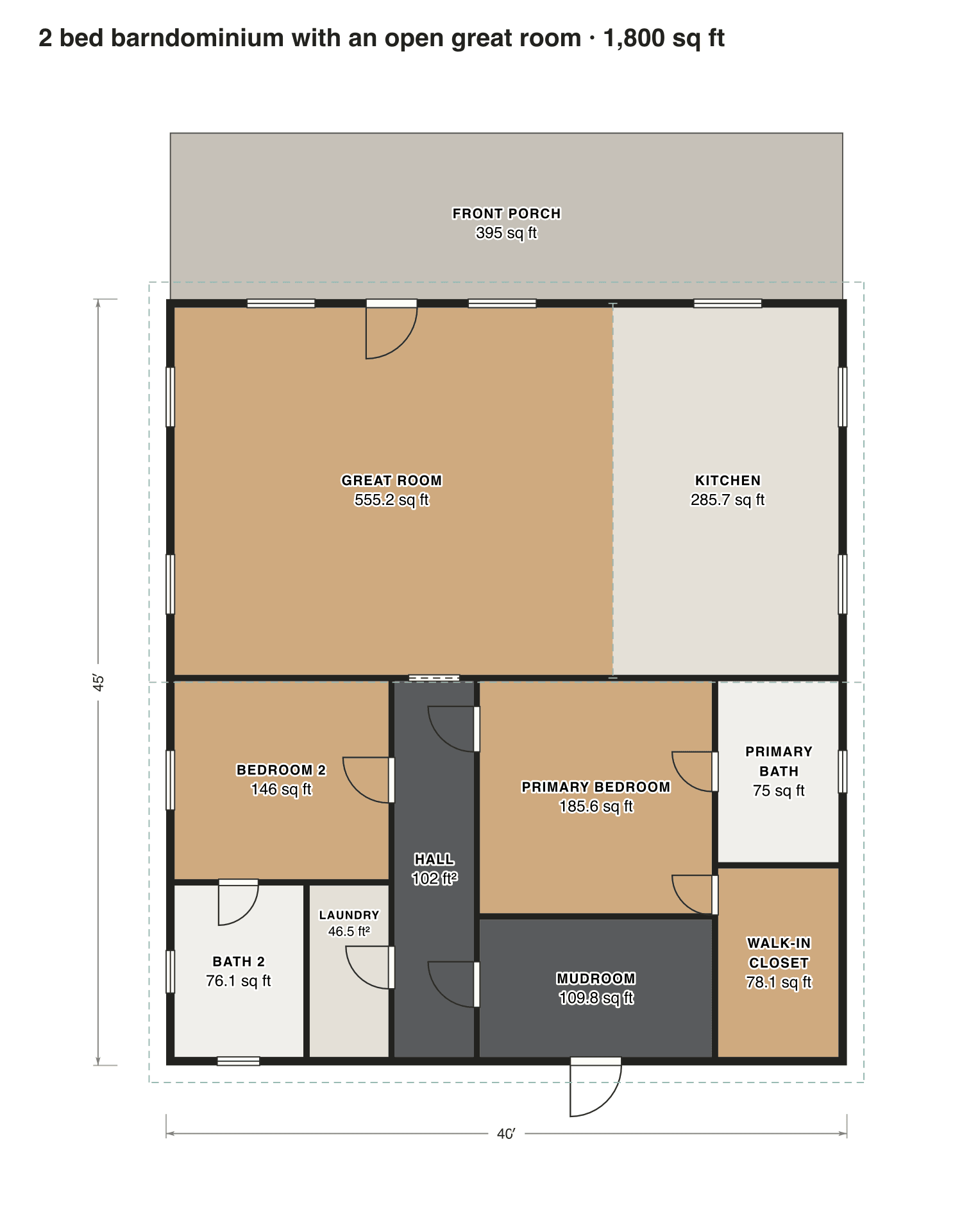

2 bed barndominium with an open great room

One big room for living and cooking across the front, two bedroom suites and a mudroom behind it, and a 10 ft deep porch along the whole front.

Finished area
1,800 sq ft
167 m² · ANSI Z765
Not counted
395 sq ft
listed apart, see below
Layout
2 bed, 2 bath
one floor
  • 395 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

2 bed barndominium with an open great room floor plan: 1,800 sq ft (167 m²) finished, 2 bed, 2 bath · one floor, drawn to scale with every room labeled.
40′ × 45′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed barndominium with an open great room

Room areas, 2 bed barndominium with an open great room
RoomFloorSq ftCounts as
Great roomFloor 1555Finished, counts
KitchenFloor 1286Finished, counts
Bedroom 2Floor 1146Finished, counts
Bath 2Floor 176Finished, counts
LaundryFloor 147Finished, counts
HallFloor 1102Finished, counts
Primary bedroomFloor 1186Finished, counts
Primary bathFloor 175Finished, counts
Walk-in closetFloor 178Finished, counts
MudroomFloor 1110Finished, counts
Front porchOutside395Outside, not counted
Finished area, ANSI Z7651,800outside the walls

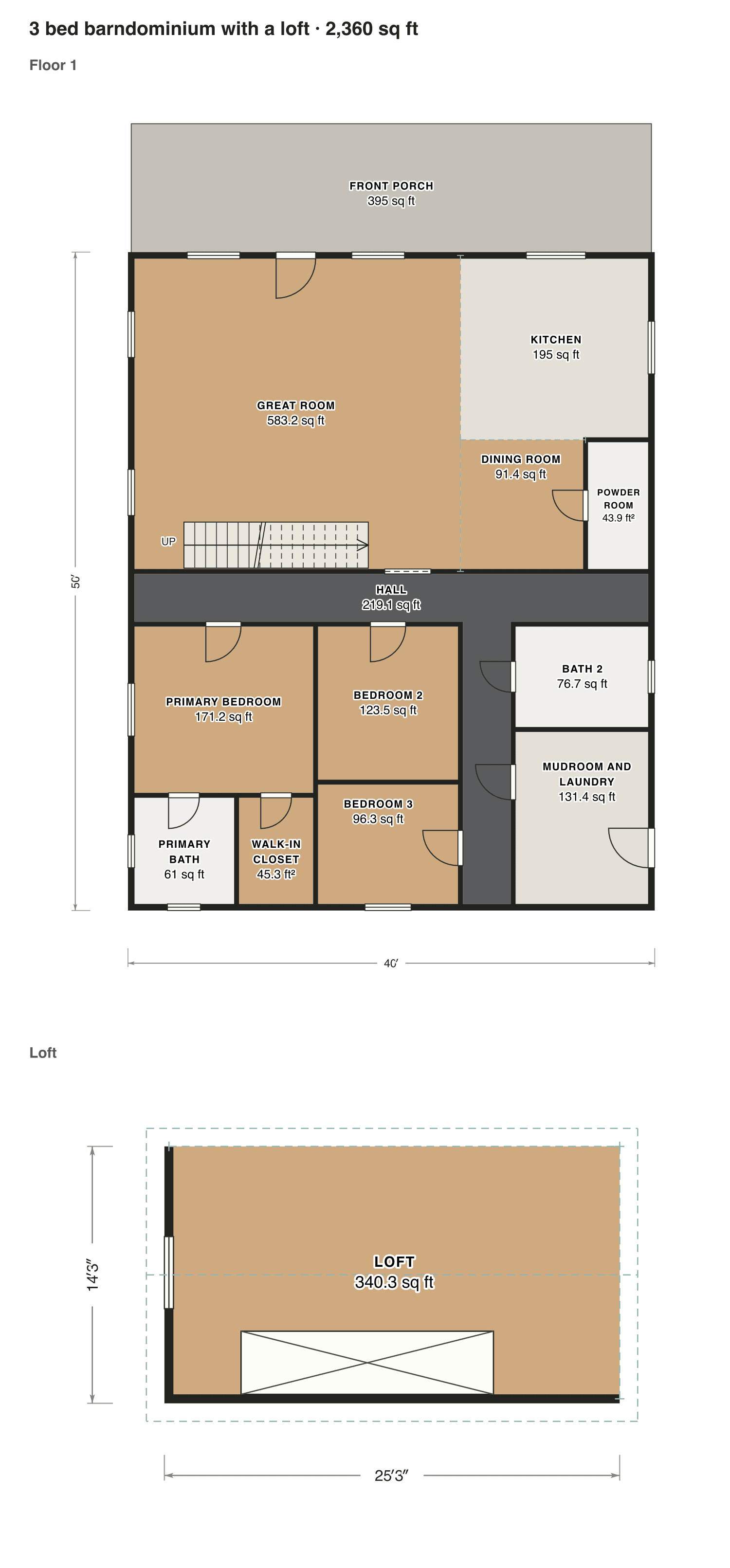

3 bed barndominium with a loft

A great room open to the roof, with a loft over its back half that looks down on the room below. Three bedrooms sit behind a cross hall.

Finished area
2,360 sq ft
219 m² · ANSI Z765
Not counted
395 sq ft
listed apart, see below
Layout
3 bed, 2.5 bath
2 floors
  • 395 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

3 bed barndominium with a loft floor plan: 2,360 sq ft (219 m²) finished, 3 bed, 2.5 bath · 2 floors, drawn to scale with every room labeled.
40′ × 50′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed barndominium with a loft

Room areas, 3 bed barndominium with a loft
RoomFloorSq ftCounts as
Great roomFloor 1583Finished, counts
KitchenFloor 1195Finished, counts
Dining roomFloor 191Finished, counts
Powder roomFloor 144Finished, counts
HallFloor 1219Finished, counts
Primary bedroomFloor 1171Finished, counts
Primary bathFloor 161Finished, counts
Walk-in closetFloor 145Finished, counts
Bedroom 2Floor 1124Finished, counts
Bedroom 3Floor 196Finished, counts
Bath 2Floor 177Finished, counts
Mudroom and laundryFloor 1131Finished, counts
LoftLoft340Finished, counts
Front porchOutside395Outside, not counted
Finished area, ANSI Z7652,360outside the walls

What counts

What counts in the square footage

Only finished living space counts toward the square footage under ANSI Z765. In the plan with a shop, 713 sq ft of shop is reported apart, and a deep front porch is outside, so it never counts.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Barndominium floor plans: questions

About these barndominium plans. Can’t find your answer? Send us a message.

What is the best layout for a barndominium?

Most barndominiums put one large open room for living, dining and cooking at the front and the bedrooms at the back or on one side. Keep a mudroom by the door to the shop or the yard.

What is the smallest size barndominium?

There is no minimum in the standard; it depends on your local rules. The smallest plan on this page has 1,800 sq ft of finished space with two bedrooms.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
