Small barndominium floor plans

A small barndominium is a barn-style steel or post-frame home with one open living room and only the rooms you need. Our two small plans have 900 to 1,200 sq ft of finished space, on a 30 x 30 ft and a 30 x 40 ft footprint. See the small barndominium floor plans below, drawn to scale and measured room by room.

Plans
2
drawn to scale
Sizes
900 to 1,200 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

30′30′LIVING ROOM260.7 sq ftKITCHEN190.6 sq ftBEDROOM164.1 sq ftBATH61.9 sq ftMUDROOM ANDLAUNDRY105.3 sq ftWALK-INCLOSET34.8 sq ftFRONT PORCH236 sq ft
1 bed barndominium, 30 × 30 ft

The plans

Small barndominium floor plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

1 bed barndominium, 30 × 30 ft

Living room and kitchen share the front half under one ceiling. Behind them sit the bedroom with a walk-in closet, a full bath and a mudroom with the laundry and a side door.

Finished area
900 sq ft
84 m² · ANSI Z765
Not counted
236 sq ft
listed apart, see below
Layout
1 bed, 1 bath
one floor
  • 236 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

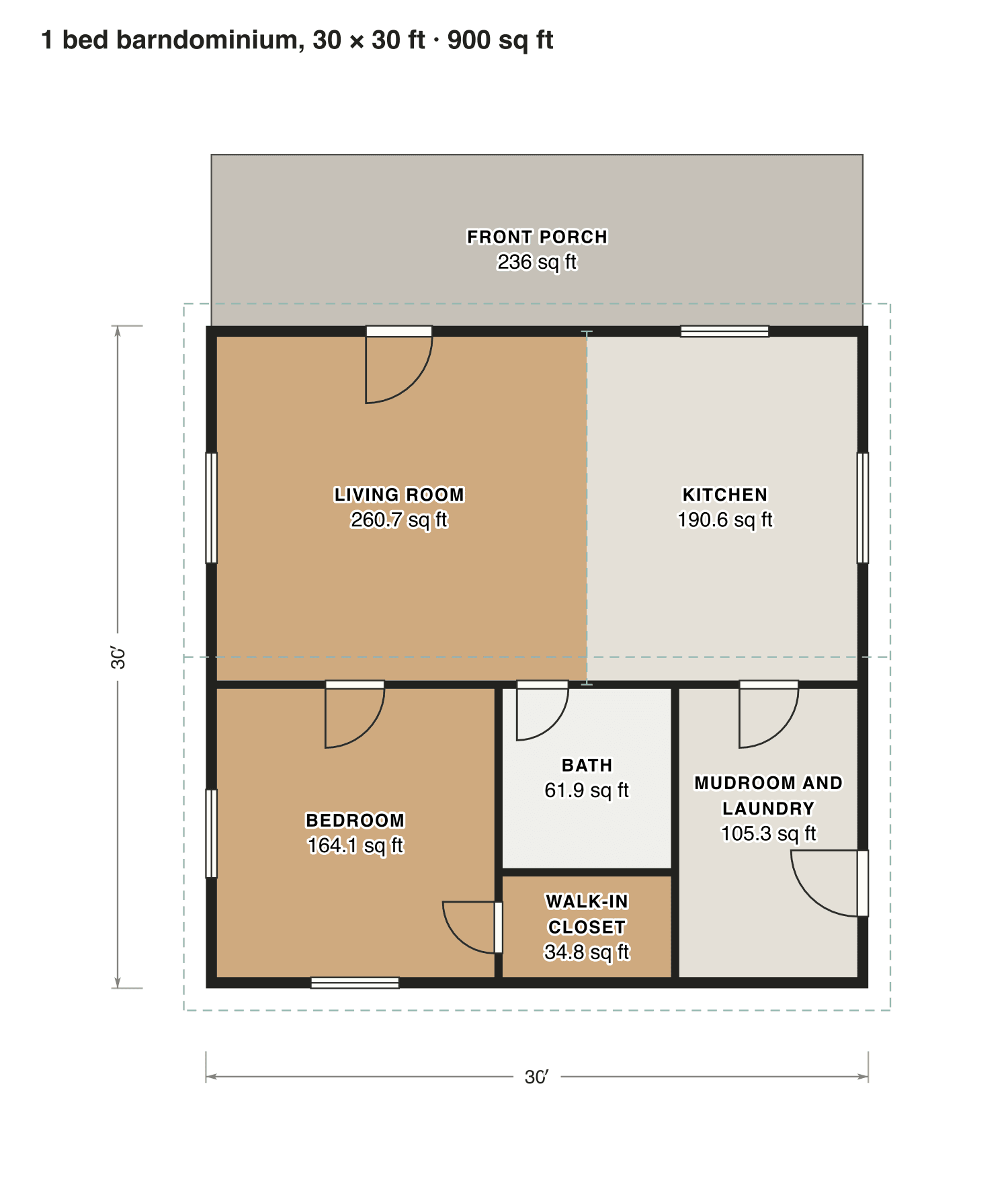

1 bed barndominium, 30 × 30 ft floor plan: 900 sq ft (84 m²) finished, 1 bed, 1 bath · one floor, drawn to scale with every room labeled.
30′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 1 bed barndominium, 30 × 30 ft

Room areas, 1 bed barndominium, 30 × 30 ft
RoomFloorSq ftCounts as
Living roomFloor 1261Finished, counts
KitchenFloor 1191Finished, counts
BedroomFloor 1164Finished, counts
BathFloor 162Finished, counts
Walk-in closetFloor 135Finished, counts
Mudroom and laundryFloor 1105Finished, counts
Front porchOutside236Outside, not counted
Finished area, ANSI Z765900outside the walls

2 bed barndominium with a vaulted great room, 30 × 40 ft

The great room and kitchen rise to the roof, and a stair along the back wall climbs to a storage loft. Two bedrooms share one bath off a short hall with a back door.

Finished area
1,200 sq ft
111 m² · ANSI Z765
Not counted
1,437 sq ft
listed apart, see below
Layout
2 bed, 1 bath
2 floors
  • 728 sq ft garage, shop or storage
  • 236 sq ft porch or deck
  • 473 sq ft open to below
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

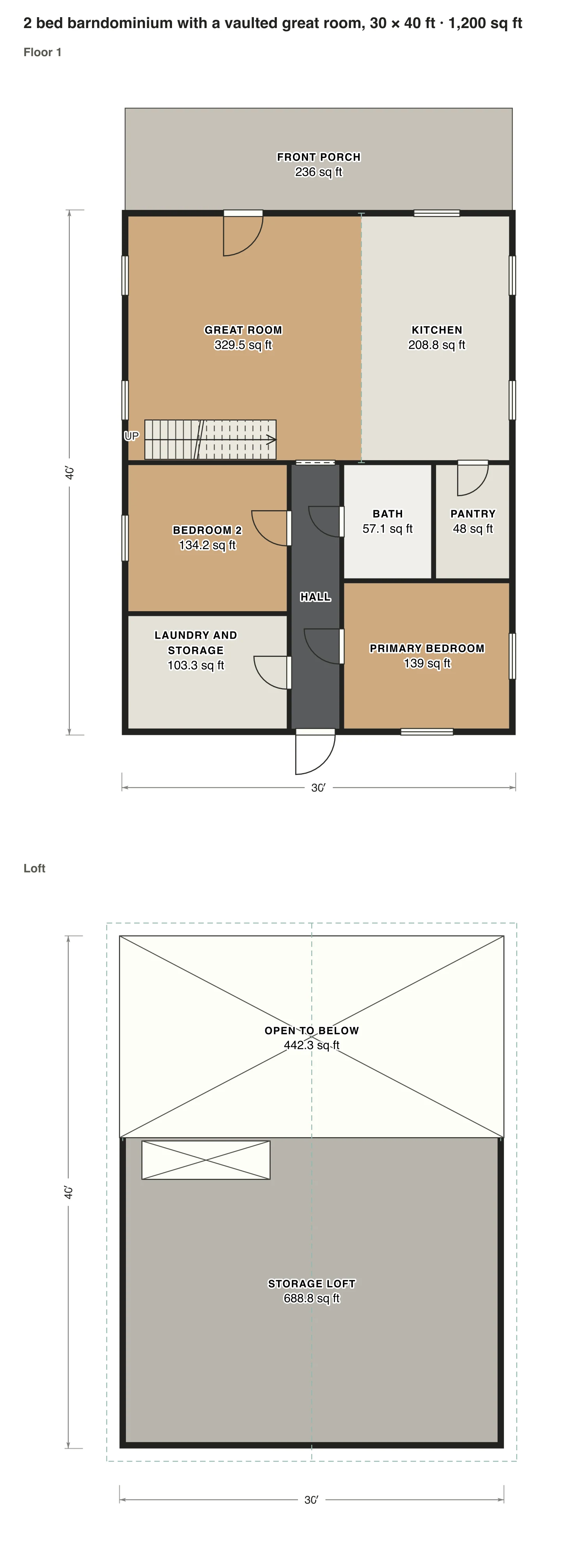

2 bed barndominium with a vaulted great room, 30 × 40 ft floor plan: 1,200 sq ft (111 m²) finished, 2 bed, 1 bath · 2 floors, drawn to scale with every room labeled.
30′ × 40′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed barndominium with a vaulted great room, 30 × 40 ft

Room areas, 2 bed barndominium with a vaulted great room, 30 × 40 ft
RoomFloorSq ftCounts as
Great roomFloor 1329Finished, counts
KitchenFloor 1209Finished, counts
HallFloor 173Finished, counts
Bedroom 2Floor 1134Finished, counts
Laundry and storageFloor 1103Finished, counts
BathFloor 157Finished, counts
PantryFloor 148Finished, counts
Primary bedroomFloor 1139Finished, counts
Open to belowLoft442Open to below, not counted
Storage loftLoft689Not finished, not counted
Front porchOutside236Outside, not counted
Finished area, ANSI Z7651,200outside the walls

What counts

What counts in the square footage

In the 30x40 plan the great room is open to the roof. The 473 sq ft of air above it is not a floor, so it never counts, and the storage loft over the bedrooms is unfinished: another 728 sq ft listed on its own.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Small barndominium floor plans: questions

About these small barndominium plans. Can’t find your answer? Send us a message.

What is the best layout for a small barndominium?

Keep one open room for living and cooking at the front, where the big windows and the porch are, and tuck the bedroom, bath and laundry behind it. Few halls leave more of the floor for living.

What is the smallest size barndominium?

No rule sets a minimum for a barndominium; your local code decides. The smallest plan here has 900 sq ft of finished space with one bedroom and one bath.

Do you have a floor plan for a 20x40 barndominium?

A 20 x 40 ft shell gives about 800 sq ft: one bedroom, one bath and an open living room with the kitchen along one wall. Open one of these plans and drag the outside walls to 20 x 40 ft to try it.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
