Townhouse floor plans

A townhouse is a home in a row of houses that share their side walls, with its own front door and usually two or three floors. Our plans have 1,674 to 1,911 sq ft of finished space, counting every floor.

Plans: 2; drawn to scale
Sizes: 1,674 to 1,911 sq ft; finished area, ANSI Z765

See the plans Open the first plan in the editor

Drawn Oct 3, 2026 · How we calculate · Example plans, not real addresses

Two-story townhouse, 2 bed

The plans

Townhouse floor plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

Two-story townhouse, 2 bed

Living room toward the street and kitchen toward the yard, with the stair and a half bath in the windowless middle. Upstairs a large bedroom at each end and the bath between them.

Finished area: 1,674 sq ft; 156 m² · ANSI Z765
Not counted: Nothing; all of it is finished space
Layout: 2 bed, 1.5 bath; 2 floors

Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

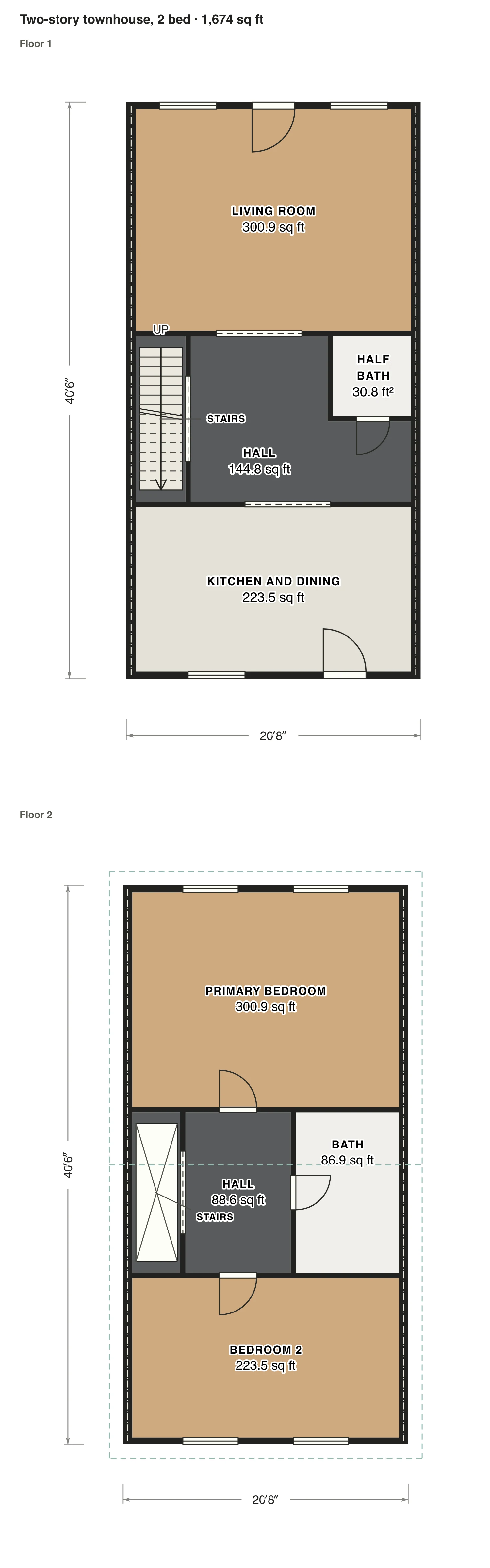

Two-story townhouse, 2 bed floor plan: 1,674 sq ft (156 m²) finished, 2 bed, 1.5 bath · 2 floors, drawn to scale with every room labeled. — 21′ × 41′ outsideExample floor plan, not a construction drawing

Rooms · Two-story townhouse, 2 bed

Room areas, Two-story townhouse, 2 bed
Room	Floor	Sq ft	Counts as
Living room	Floor 1	301	Finished, counts
Stairs	Floor 1	40	Finished, counts
Hall	Floor 1	145	Finished, counts
Half bath	Floor 1	31	Finished, counts
Kitchen and dining	Floor 1	224	Finished, counts
Primary bedroom	Floor 2	301	Finished, counts
Stairs	Floor 2	40	Finished, counts
Hall	Floor 2	89	Finished, counts
Bath	Floor 2	87	Finished, counts
Bedroom 2	Floor 2	224	Finished, counts
Finished area, ANSI Z765		1,674	outside the walls

Three-story townhouse with a garage, 3 bed

A one-car garage and a den on the ground floor, the living floor with a deck above it, and three bedrooms on top. Two stair flights fold back and forth along one party wall.

Finished area: 1,911 sq ft; 178 m² · ANSI Z765
Not counted: 450 sq ft; listed apart, see below
Layout: 3 bed, 2.5 bath; 3 floors

290 sq ft garage, shop or storage
160 sq ft porch or deck

Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

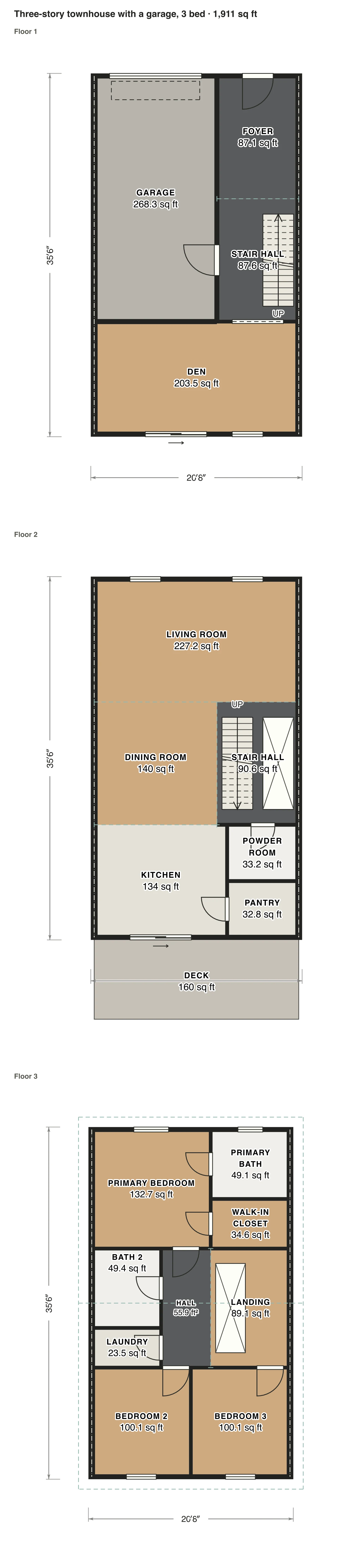

Three-story townhouse with a garage, 3 bed floor plan: 1,911 sq ft (178 m²) finished, 3 bed, 2.5 bath · 3 floors, drawn to scale with every room labeled. — 21′ × 36′ outsideExample floor plan, not a construction drawing

Rooms · Three-story townhouse with a garage, 3 bed

Room areas, Three-story townhouse with a garage, 3 bed
Room	Floor	Sq ft	Counts as
Garage	Floor 1	268	Not finished, not counted
Foyer	Floor 1	87	Finished, counts
Stair hall	Floor 1	88	Finished, counts
Den	Floor 1	203	Finished, counts
Living room	Floor 2	227	Finished, counts
Stair hall	Floor 2	91	Finished, counts
Dining room	Floor 2	140	Finished, counts
Kitchen	Floor 2	134	Finished, counts
Powder room	Floor 2	33	Finished, counts
Pantry	Floor 2	33	Finished, counts
Primary bedroom	Floor 3	133	Finished, counts
Primary bath	Floor 3	49	Finished, counts
Walk-in closet	Floor 3	35	Finished, counts
Bath 2	Floor 3	49	Finished, counts
Laundry	Floor 3	23	Finished, counts
Hall	Floor 3	56	Finished, counts
Landing	Floor 3	89	Finished, counts
Bedroom 2	Floor 3	100	Finished, counts
Bedroom 3	Floor 3	100	Finished, counts
Deck	Outside	160	Outside, not counted
Finished area, ANSI Z765		1,911	outside the walls

What counts

What counts in the square footage

In the three-story plan the 290 sq ft garage on the ground floor is unfinished and reported apart, and the 160 sq ft deck off the kitchen is outside. The den behind the garage is finished, so it counts.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.
