Tudor house plans

A Tudor house is the English revival style with a steep front gable, half timbering over brick or stucco, tall narrow windows and a big chimney. Our two plans have 1,814 to 2,496 sq ft, one with a full upper floor and one with rooms under the roof.

Plans
2
drawn to scale
Sizes
1,814 to 2,496 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

41′ 6″34′ 6″GREAT HALL343.1 sq ftDINING ROOM156.8 sq ftKITCHEN183.9 sq ftFOYER101.3 sq ftSTAIR HALL118.6 sq ftPOWDERROOM31.6 ft²FAMILY ROOM156.8 sq ftLAUNDRY42.5 ft²UP
4 bed Tudor on two floors

The plans

Tudor house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

4 bed Tudor on two floors

The front gable steps forward and holds a great hall below and the primary bedroom above. The entry sits in the corner beside it, with the stair in a hall behind.

Finished area
2,496 sq ft
232 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
4 bed, 2.5 bath
2 floors
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

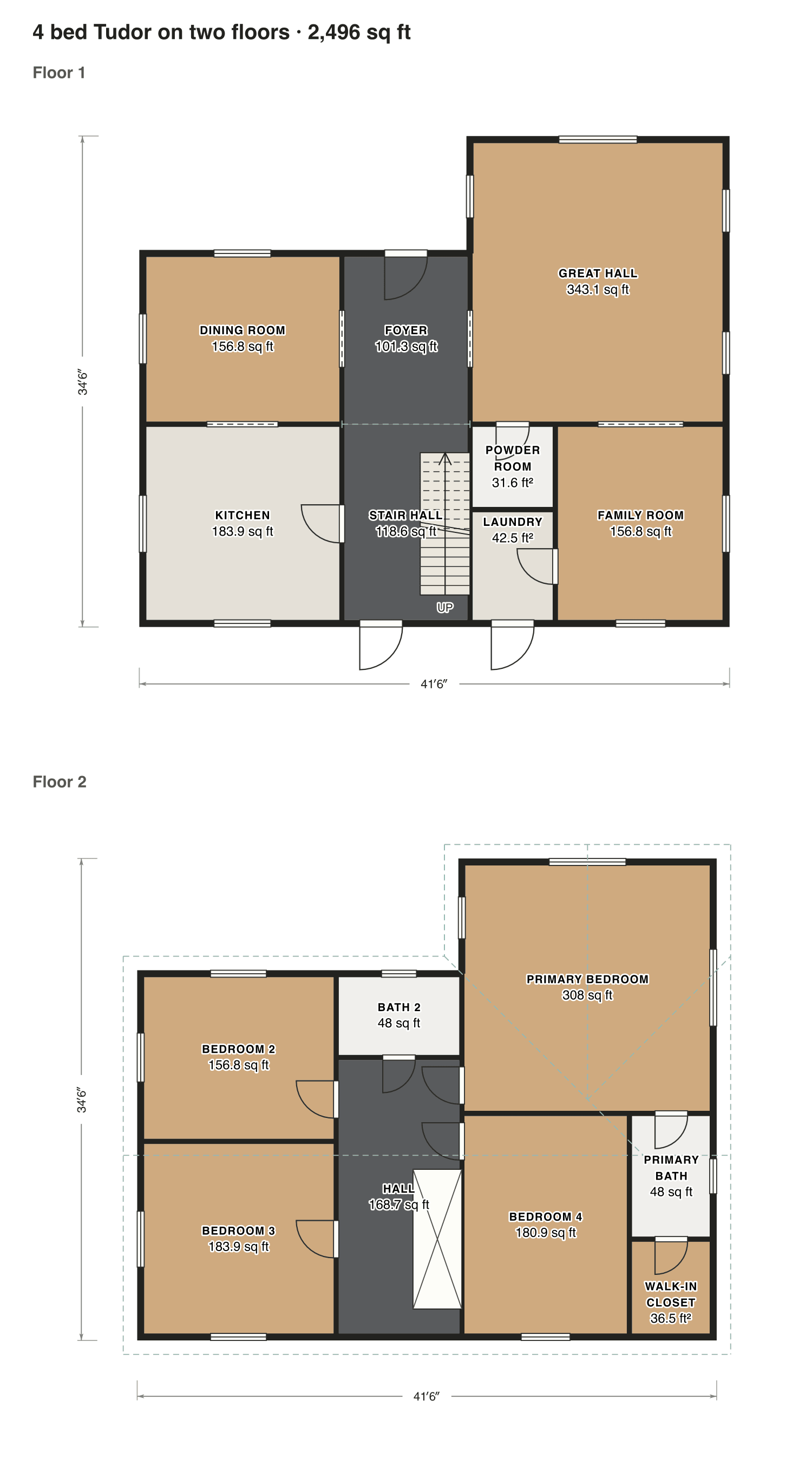

4 bed Tudor on two floors floor plan: 2,496 sq ft (232 m²) finished, 4 bed, 2.5 bath · 2 floors, drawn to scale with every room labeled.
42′ × 35′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed Tudor on two floors

Room areas, 4 bed Tudor on two floors
RoomFloorSq ftCounts as
Dining roomFloor 1157Finished, counts
FoyerFloor 1101Finished, counts
Great hallFloor 1343Finished, counts
KitchenFloor 1184Finished, counts
Stair hallFloor 1119Finished, counts
Powder roomFloor 132Finished, counts
LaundryFloor 143Finished, counts
Family roomFloor 1157Finished, counts
Bedroom 2Floor 2157Finished, counts
Bath 2Floor 248Finished, counts
HallFloor 2169Finished, counts
Bedroom 3Floor 2184Finished, counts
Primary bedroomFloor 2308Finished, counts
Bedroom 4Floor 2181Finished, counts
Primary bathFloor 248Finished, counts
Walk-in closetFloor 237Finished, counts
Finished area, ANSI Z7652,496outside the walls

3 bed Tudor, story and a half

The primary suite is on the ground floor beside the living room. Two bedrooms under the front slope, a sitting room under the back slope and a laundry share the upper floor.

Finished area
1,814 sq ft
169 m² · ANSI Z765
Not counted
496 sq ft
listed apart, see below
Layout
3 bed, 2 bath
2 floors
  • 204 sq ft garage, shop or storage
  • 292 sq ft under 5 ft
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

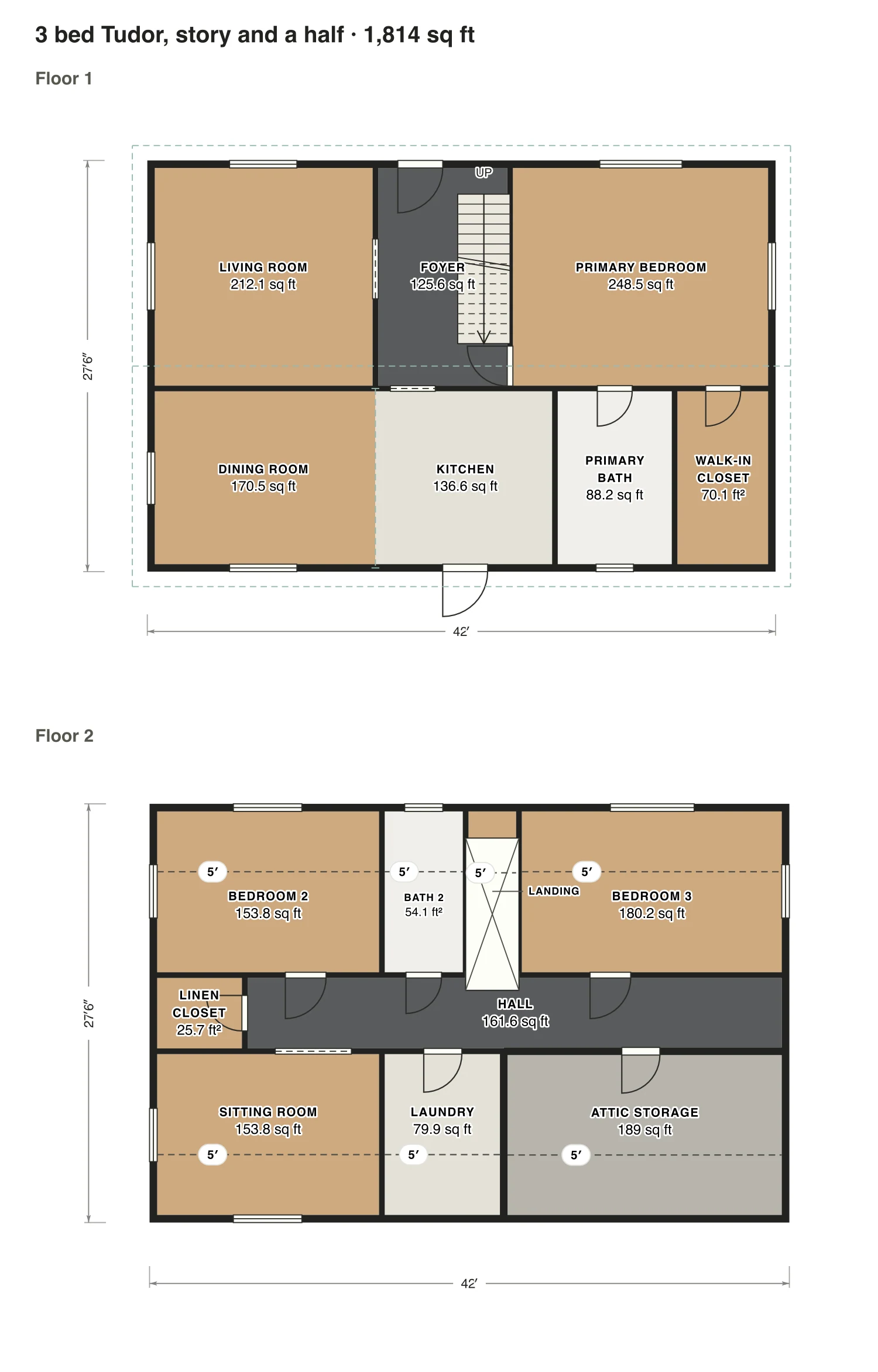

3 bed Tudor, story and a half floor plan: 1,814 sq ft (169 m²) finished, 3 bed, 2 bath · 2 floors, drawn to scale with every room labeled.
42′ × 28′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed Tudor, story and a half

Room areas, 3 bed Tudor, story and a half
RoomFloorSq ftCounts as
Living roomFloor 1212Finished, counts
Dining roomFloor 1171Finished, counts
FoyerFloor 1126Finished, counts
KitchenFloor 1137Finished, counts
Primary bedroomFloor 1248Finished, counts
Primary bathFloor 188Finished, counts
Walk-in closetFloor 170Finished, counts
Bedroom 2Floor 2154Counts above 5 ft; 68 sq ft under 5 ft not counted
Bath 2Floor 254Counts above 5 ft; 25 sq ft under 5 ft not counted
LandingFloor 234Counts above 5 ft; 16 sq ft under 5 ft not counted
Bedroom 3Floor 2180Counts above 5 ft; 79 sq ft under 5 ft not counted
Linen closetFloor 226Finished, counts
HallFloor 2162Finished, counts
Sitting roomFloor 2154Counts above 5 ft; 68 sq ft under 5 ft not counted
LaundryFloor 280Counts above 5 ft; 37 sq ft under 5 ft not counted
Attic storageFloor 2189Not finished, not counted
Finished area, ANSI Z7651,814outside the walls

What counts

What counts in the square footage

Under a steep Tudor roof the edges of the upper rooms are low. In the story and a half plan, 292 sq ft is under 5 ft and drops out of the total, and 204 sq ft of attic storage is not finished.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Tudor house plans: questions

About these tudor house plans. Can’t find your answer? Send us a message.

What makes a house a Tudor?

A steep roof with at least one gable facing the street, decorative half timbering, a large chimney often on the front, and groups of tall windows with small panes. The entry is often in a small gabled porch.

What are common Tudor house problems?

Rooms under the steep roof lose space near the eaves, the many roof valleys need good flashing, and old half timbering can hide water damage. Check the upper floor area: the low part does not count.

Is there a small Tudor house plan?

Yes. The story and a half plan on this page has 1,814 sq ft that counts, with three bedrooms on a footprint of about 42 by 28 ft.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
