6 bedroom house plans

A 6-bedroom house is made for a big or blended family, or for several generations under one roof. Ours have 3,600 to 4,000 sq ft on two floors: one keeps all six bedrooms upstairs, the other puts a guest suite downstairs. See the 6 bedroom house plans below, drawn to scale and measured room by room.

Plans
2
drawn to scale
Sizes
3,600 to 4,000 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

60′30′LIVING ROOM357.7 sq ftFOYER111 sq ftDINING ROOM186.2 sq ftOFFICE190.2 sq ftFAMILY ROOM277.7 sq ftKITCHEN365.4 sq ftMUDROOM73.5 sq ftBATH 453.4 ft²LAUNDRY48.9 ft²UP
6 bed house with all bedrooms upstairs

The plans

6 bedroom house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

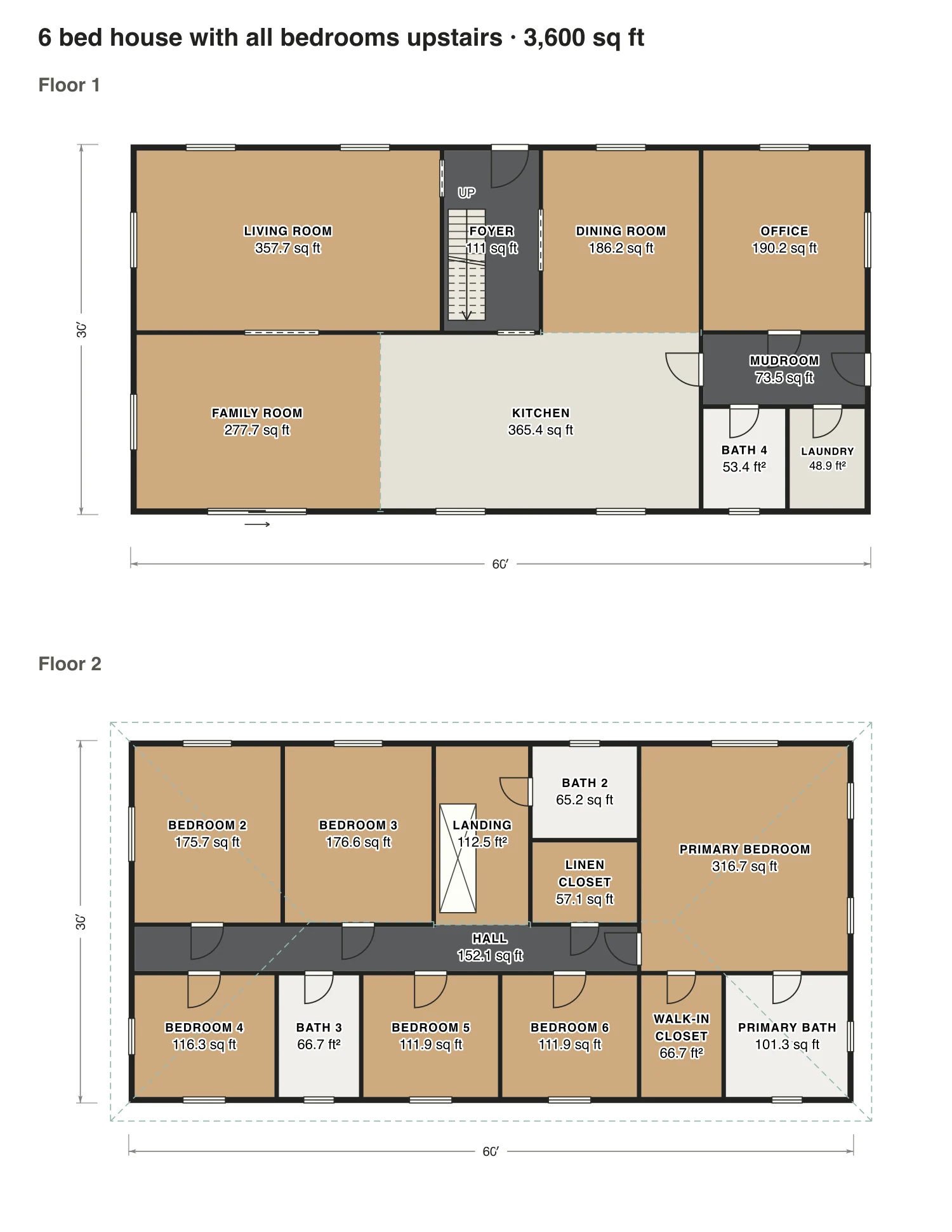

6 bed house with all bedrooms upstairs

The main floor is for daily life: formal living and dining rooms at the front, a long kitchen with the family room behind, and an office by the mudroom. Six bedrooms and three baths fill the upper floor.

Finished area
3,600 sq ft
334 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
6 bed, 4 bath
2 floors
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

6 bed house with all bedrooms upstairs floor plan: 3,600 sq ft (334 m²) finished, 6 bed, 4 bath · 2 floors, drawn to scale with every room labeled.
60′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 6 bed house with all bedrooms upstairs

Room areas, 6 bed house with all bedrooms upstairs
RoomFloorSq ftCounts as
Living roomFloor 1358Finished, counts
FoyerFloor 1111Finished, counts
Dining roomFloor 1186Finished, counts
OfficeFloor 1190Finished, counts
Family roomFloor 1278Finished, counts
KitchenFloor 1365Finished, counts
MudroomFloor 173Finished, counts
Bath 4Floor 153Finished, counts
LaundryFloor 149Finished, counts
Bedroom 2Floor 2176Finished, counts
Bedroom 3Floor 2177Finished, counts
LandingFloor 2112Finished, counts
Bath 2Floor 265Finished, counts
Linen closetFloor 257Finished, counts
Primary bedroomFloor 2317Finished, counts
HallFloor 2152Finished, counts
Bedroom 4Floor 2116Finished, counts
Bath 3Floor 267Finished, counts
Bedroom 5Floor 2112Finished, counts
Bedroom 6Floor 2112Finished, counts
Walk-in closetFloor 267Finished, counts
Primary bathFloor 2101Finished, counts
Finished area, ANSI Z7653,600outside the walls

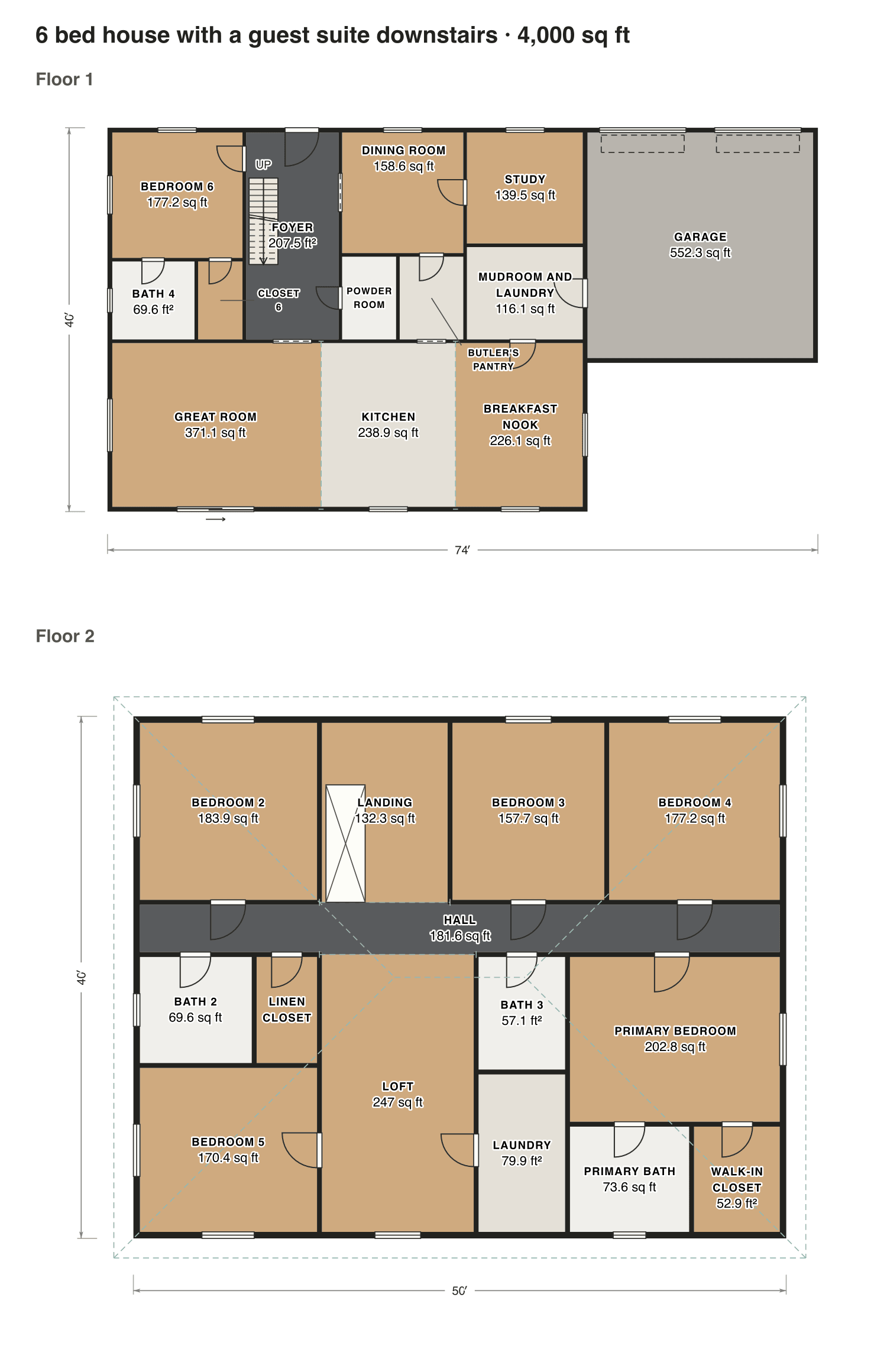

6 bed house with a guest suite downstairs

Bedroom 6 has its own bath and closet next to the foyer, so a guest or a grandparent never needs the stairs. Upstairs five bedrooms gather around a loft, with the laundry on the same floor.

Finished area
4,000 sq ft
372 m² · ANSI Z765
Not counted
588 sq ft
listed apart, see below
Layout
6 bed, 4.5 bath
2 floors
  • 588 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

6 bed house with a guest suite downstairs floor plan: 4,000 sq ft (372 m²) finished, 6 bed, 4.5 bath · 2 floors, drawn to scale with every room labeled.
74′ × 40′ outsideExample floor plan, not a construction drawing

Rooms · 6 bed house with a guest suite downstairs

Room areas, 6 bed house with a guest suite downstairs
RoomFloorSq ftCounts as
Bedroom 6Floor 1177Finished, counts
Bath 4Floor 170Finished, counts
Closet 6Floor 138Finished, counts
FoyerFloor 1208Finished, counts
Dining roomFloor 1159Finished, counts
Powder roomFloor 149Finished, counts
Butler's pantryFloor 157Finished, counts
StudyFloor 1139Finished, counts
Mudroom and laundryFloor 1116Finished, counts
Great roomFloor 1371Finished, counts
KitchenFloor 1239Finished, counts
Breakfast nookFloor 1226Finished, counts
GarageFloor 1552Not finished, not counted
Bedroom 2Floor 2184Finished, counts
LandingFloor 2132Finished, counts
Bedroom 3Floor 2158Finished, counts
Bedroom 4Floor 2177Finished, counts
HallFloor 2182Finished, counts
Bath 2Floor 270Finished, counts
Linen closetFloor 238Finished, counts
Bedroom 5Floor 2170Finished, counts
LoftFloor 2247Finished, counts
Bath 3Floor 257Finished, counts
LaundryFloor 280Finished, counts
Primary bedroomFloor 2203Finished, counts
Primary bathFloor 274Finished, counts
Walk-in closetFloor 253Finished, counts
Finished area, ANSI Z7654,000outside the walls

What counts

What counts in the square footage

Stairs count on the floor they go down from, so the stairwell is part of the upper floor in both plans. The 588 sq ft garage of the larger plan is unfinished and stays out of the total.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

6 bedroom house plans: questions

About these 6-bedroom house plans. Can’t find your answer? Send us a message.

How big is a 6 bedroom house?

Usually 3,500 sq ft or more, depending on the size of the bedrooms and the living areas. The plans on this page have 3,600 and 4,000 sq ft.

Can I turn one of these into a 7 bedroom house plan?

Yes. Open a plan in the editor and make the office or the loft a bedroom with a door and a closet. The total area stays the same; only the room count changes.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
