Right-click anything on the plan for what you can do with it, right there. On a phone or tablet, press and hold.
The right-click menu: step by step
1. Open it
Right-click on the plan, press and hold for half a second on a touch screen, or press ⇧F10 for what is chosen.
2. On an empty spot
Paste here, draw a wall or room from here, place furniture or text, zoom to fit, the underlay, Layers and Select all.

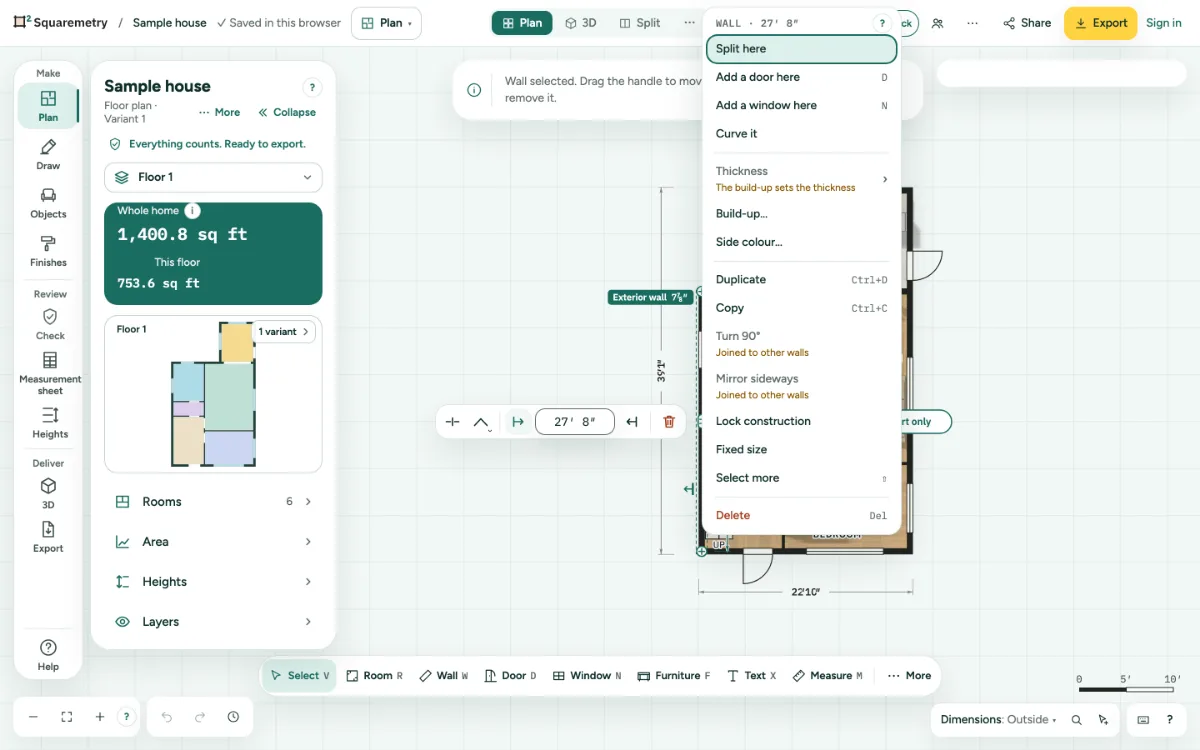

3. On a wall, room, door or item
Split, add a door or window, curve, thickness, build-up, rename, room type, flip, width, turn, mirror, duplicate and delete.
4. With the keyboard
Arrow keys move, Right opens a submenu, Left goes back, Enter runs a row, Esc closes. Letters jump to a row that starts with them. Delete and Backspace only close the menu; a shortcut such as ⌘Z closes it and still works.
Shortcuts
- ⇧F10
- Right-click menu for what is chosen
Messages you may see
- Construction is locked
- Copy walls first
- This tab only shows the plan
